MAX761ESA+ データシート

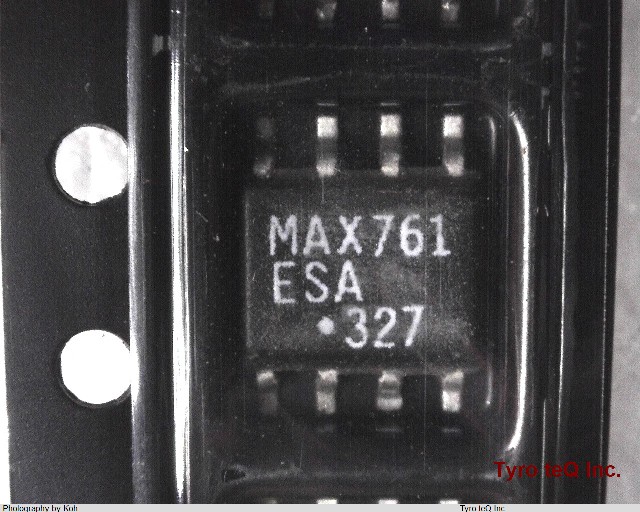

Name: MAX761ESA+
Brand: MAXIM
SKU: 230331937-0000-0000-0000

MAX761ESA+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX761ESA+ の詳細情報

型番	MAX761ESA+
メーカー	MAXIM
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE FREQUENCY MODULATION
Input Voltage-Max	16.5 V
Input Voltage-Min	3 V
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	1.5 A
Output Voltage-Nom	12 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	0.11 mA
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	300 kHz
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
