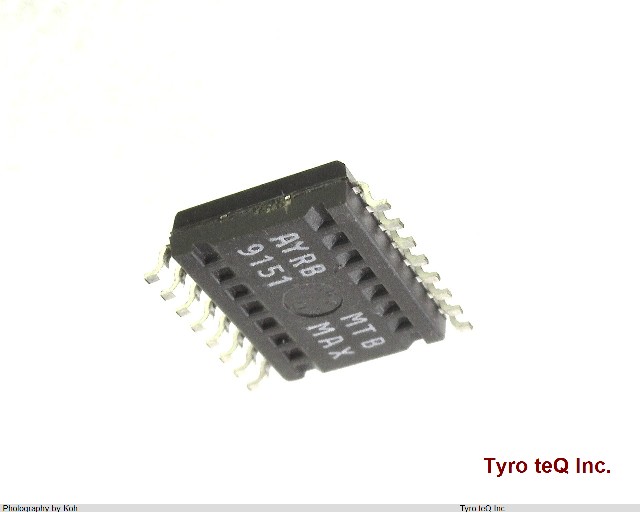

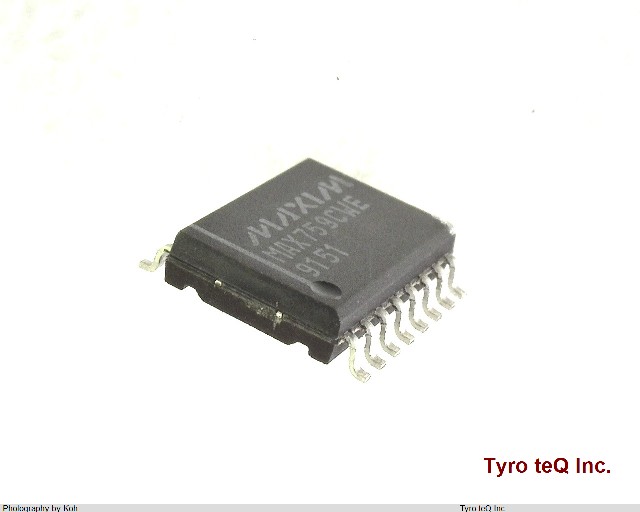

MAX759CWE データシート

Name: MAX759CWE
Brand: MAXIM
SKU: 230006974-0000-0000-0000

MAX759CWE - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX759CWE の詳細情報

型番	MAX759CWE
メーカー	MAXIM
データシート
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM -4.775V TO -5.225V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	11 V
Input Voltage-Max (V)	11
Input Voltage-Min	4 V
Input Voltage-Min (V)	4
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	10.3 mm
Length (mm)	10.3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	2.5 A
Output Current-Max (A)	2.5
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Qualification Status	Not Qualified
Seated Height-Max	2.65 mm
Seated Height-Max (mm)	2.65
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	4 mA
Supply Current-Max (mA)	4
Surface Mount	YES
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	185 kHz
Switching Frequency-Max (kHz)	185
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	7.5 mm
Width (mm)	7.5
