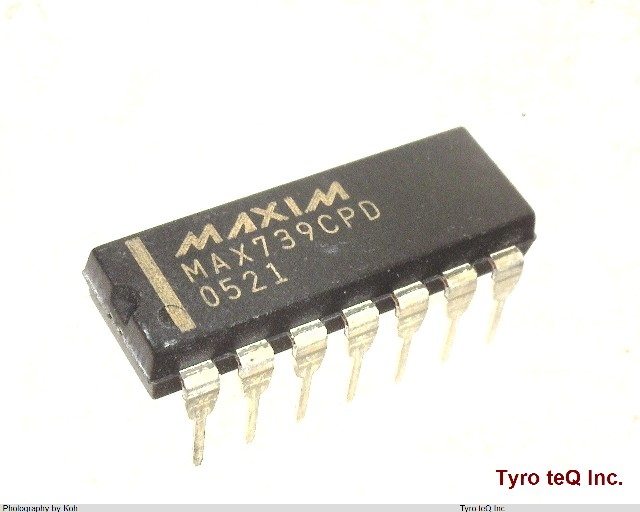

MAX739CPD データシート

Name: MAX739CPD
Brand: MAXIM
SKU: 230331924-0000-0000-0000

MAX739CPD - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX739CPD の詳細情報

型番	MAX739CPD
メーカー	MAXIM
データシート
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	11 V
Input Voltage-Min	4 V
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.05 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Output Current-Max	2.5 A
Output Voltage-Nom	-5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	3.5 mA
Surface Mount	NO
Switcher Configuration	BUCK-BOOST
Switching Frequency-Max	165 kHz
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
