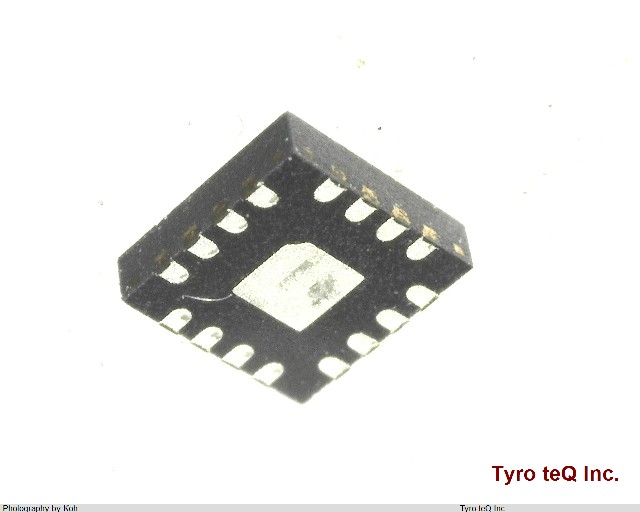

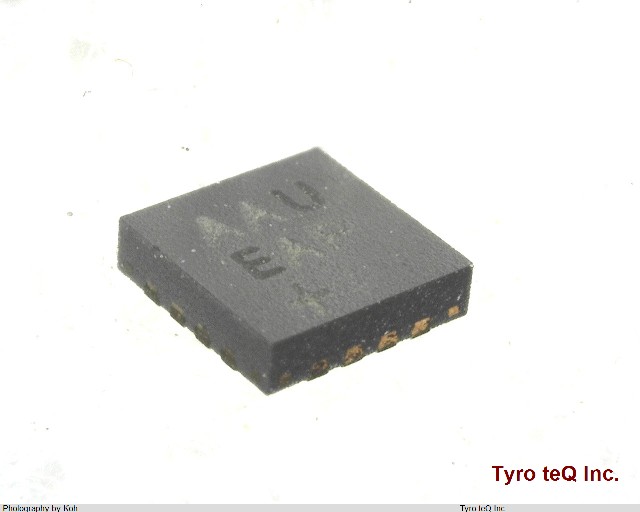

MAX7315ATE+ データシート

Name: MAX7315ATE+
Brand: MAXIM
SKU: 230499256-0000-0000-0000

MAX7315ATE+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX7315ATE+ の詳細情報

型番	MAX7315ATE+
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-XQCC-N16
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Bits	8
Number of I/O Lines	8
Number of Ports	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC16,.12SQ,20
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.5/3.3 V
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Parallel IO Port
Supply Voltage-Max	3.6 V
Supply Voltage-Max (V)	3.6
Supply Voltage-Min	2 V
Supply Voltage-Min (V)	2
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	BICMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
Width (mm)	3
uPs/uCs/Peripheral ICs Type	PARALLEL IO PORT, GENERAL PURPOSE
