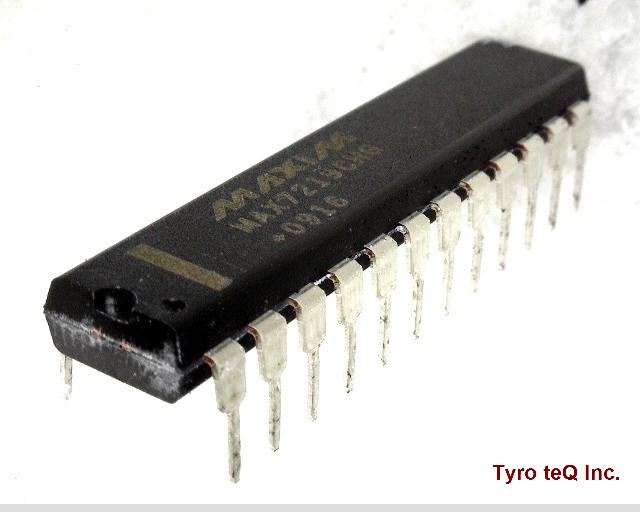

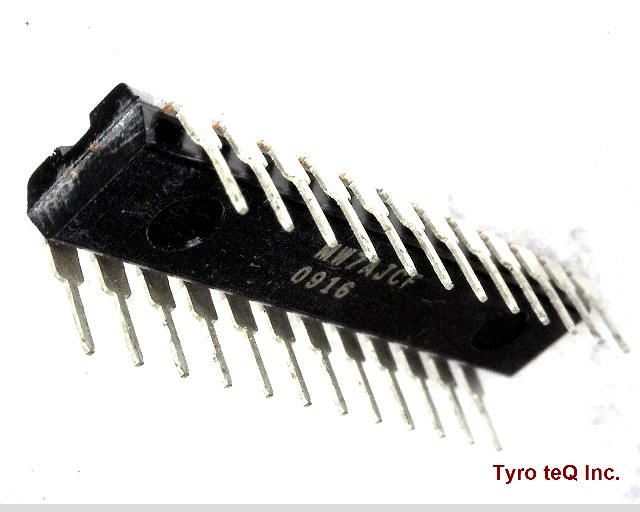

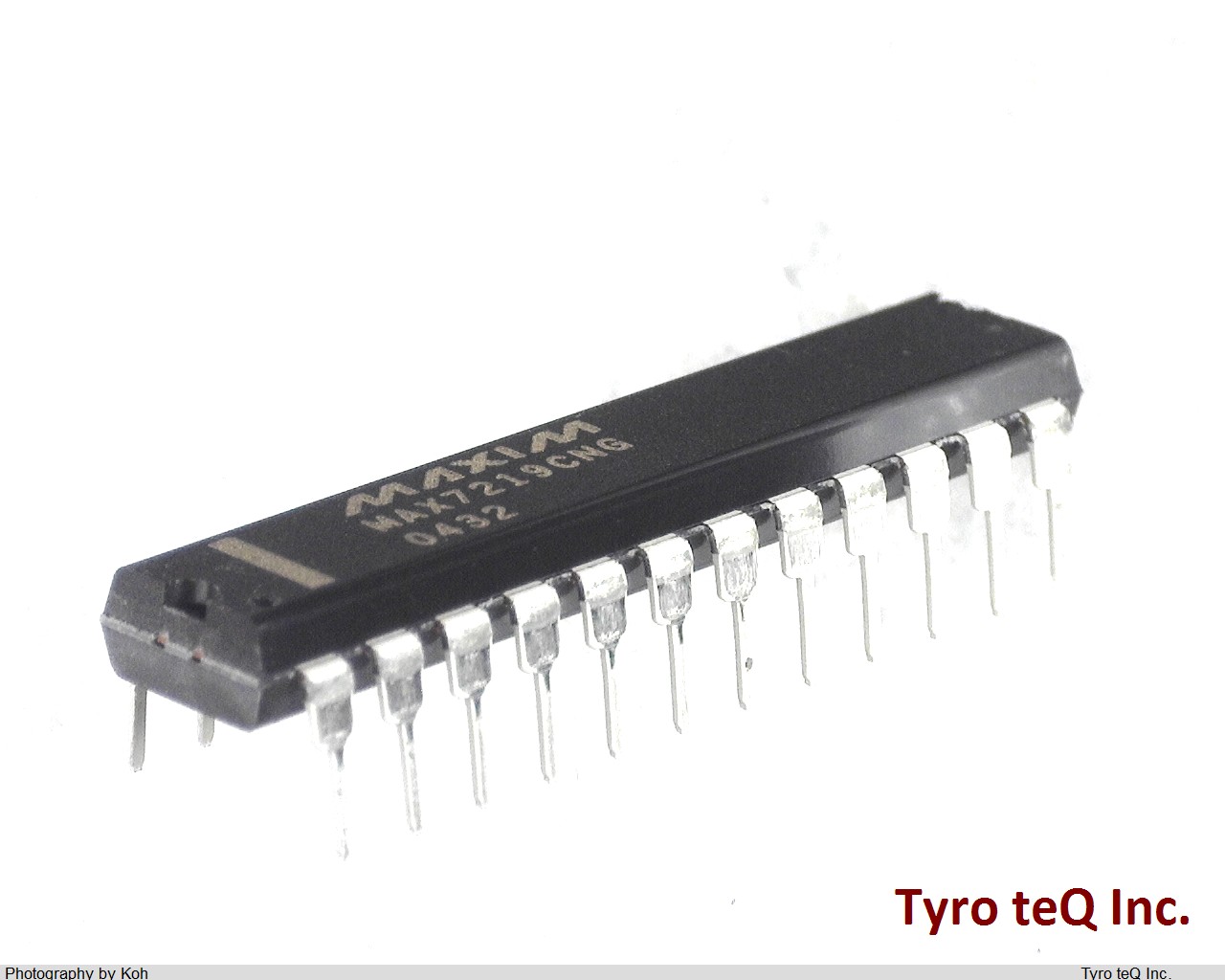

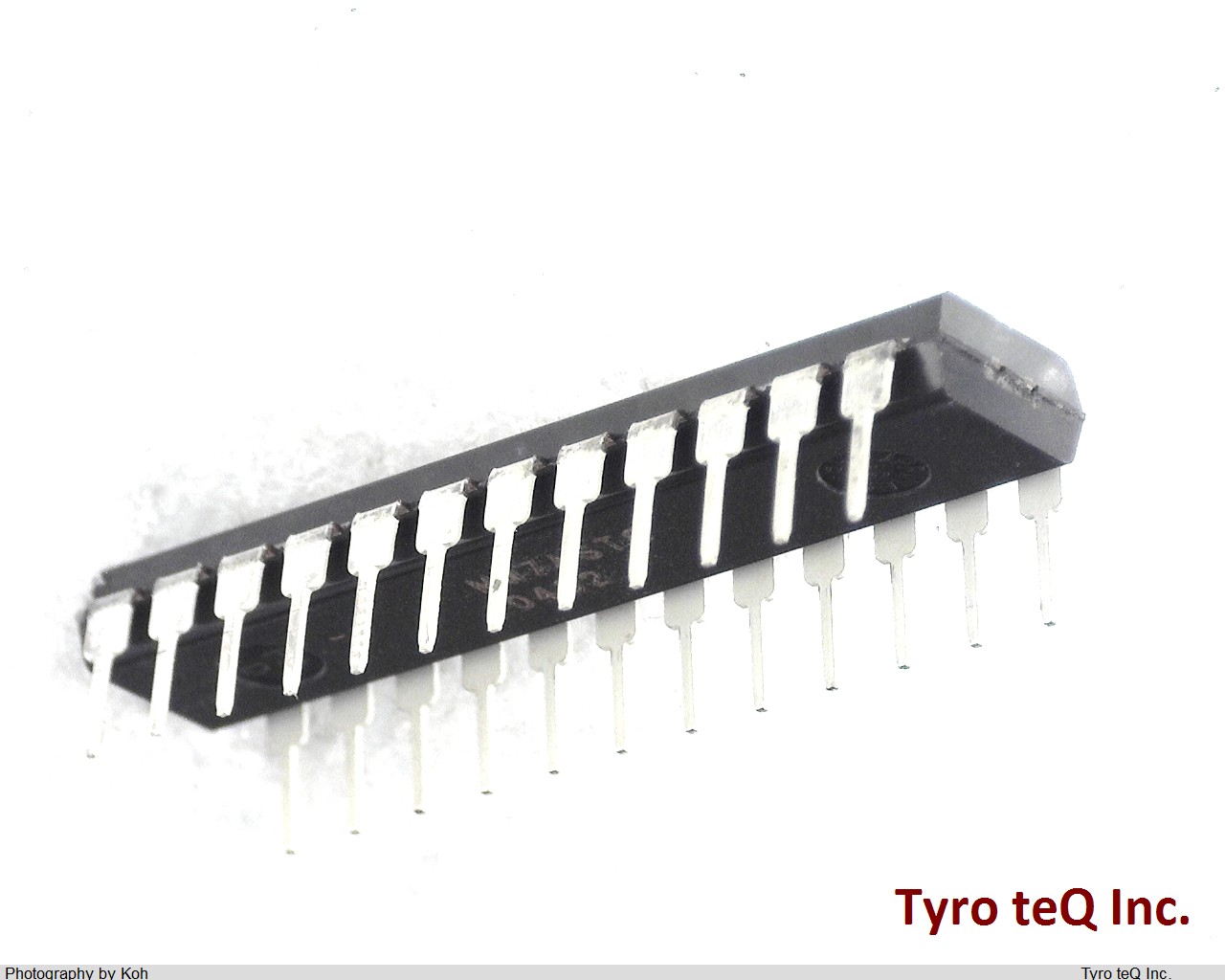

MAX7219CNG データシート

Name: MAX7219CNG
Brand: MAXIM
SKU: 230006930-0000-0000-0000

MAX7219CNG - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX7219CNG の詳細情報

型番	MAX7219CNG
メーカー	MAXIM
データシート
Additional Feature	COMMON-CATHODE
DLA Qualification	Not Qualified
Data Input Mode	SERIAL
Display Mode	SEGMENT
Input Characteristics	STANDARD
Interface IC Type	LED DISPLAY DRIVER
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	30.545 mm
Length (mm)	30.545
Moisture Sensitivity Level	1
Multiplexed Display Capability	YES
Number of Digits/Characters	8-DIGIT
Number of Functions	1
Number of Segments	7
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Characteristics	TOTEM-POLE
Output Polarity	TRUE
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5 V
Power Supplies (V)	5
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Display Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	4 V
Supply Voltage-Min (V)	4
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	MOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
fmax-Min	1.3 MHz
