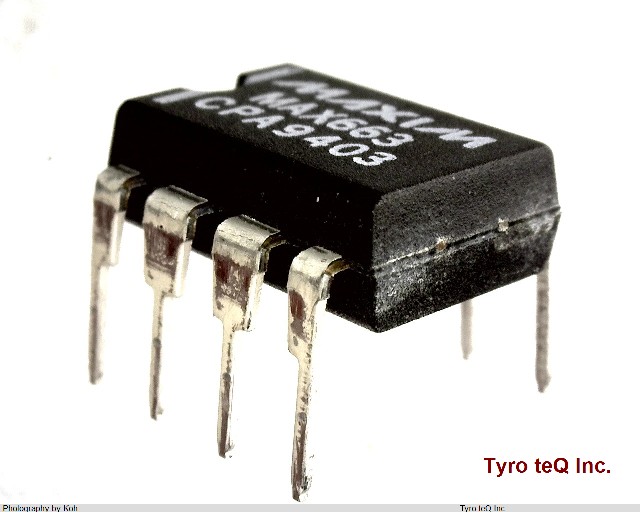

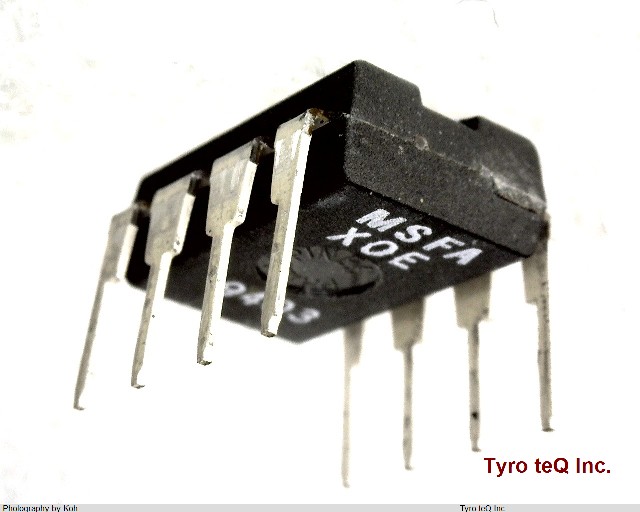

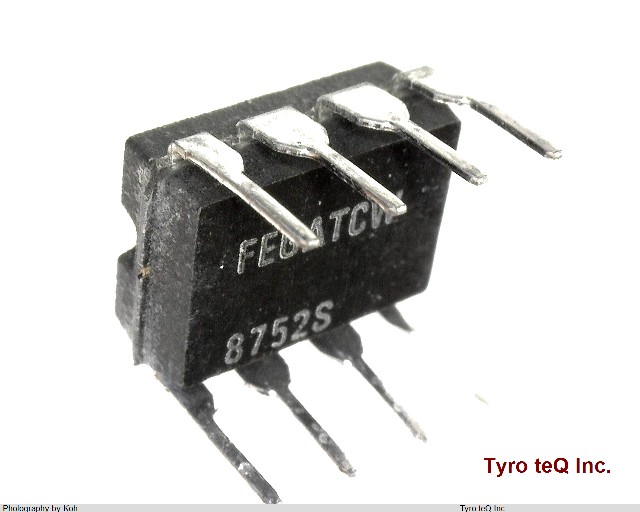

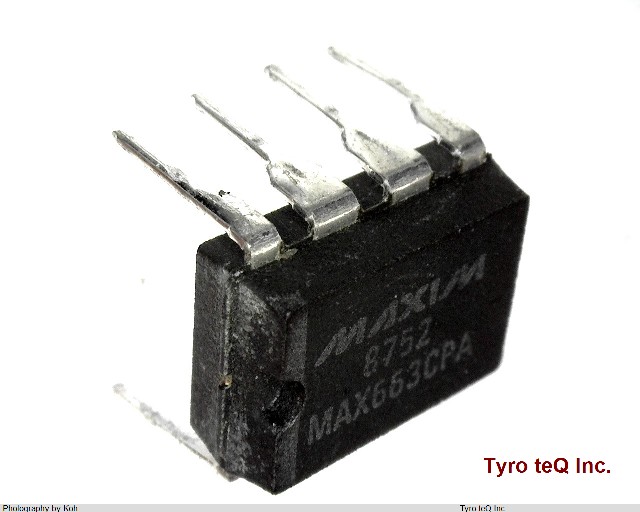

MAX663CPA データシート

Name: MAX663CPA
Brand: MAXIM
SKU: 230039734-0000-0000-0000

MAX663CPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX663CPA の詳細情報

型番	MAX663CPA
メーカー	MAXIM
データシート
Adjustability	FIXED/ADJUSTABLE
DLA Qualification	Not Qualified
Dropout Voltage1-Nom	3 V
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Length (mm)	9.375
Line Regulation-Max (%/V)	0.35
Load Regulation-Max(%)	2.8 %
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	2
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current1-Max	0.04 A
Output Current1-Max (A)	0.04
Output Voltage1-Max	16 V
Output Voltage1-Max (V)	16
Output Voltage1-Min	1.3 V
Output Voltage1-Min (V)	1.3
Output Voltage1-Nom	5 V
Output Voltage1-Nom (V)	5
Output Voltage2-Max	16 V
Output Voltage2-Max (V)	16
Output Voltage2-Min	1.3 V
Output Voltage2-Min (V)	1.3
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Regulator Type	FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Other Regulators
Surface Mount	NO
Technology	CMOS
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Voltage Tolerance-Max	5 %
Width	7.62 mm
