MAX662ACPA データシート

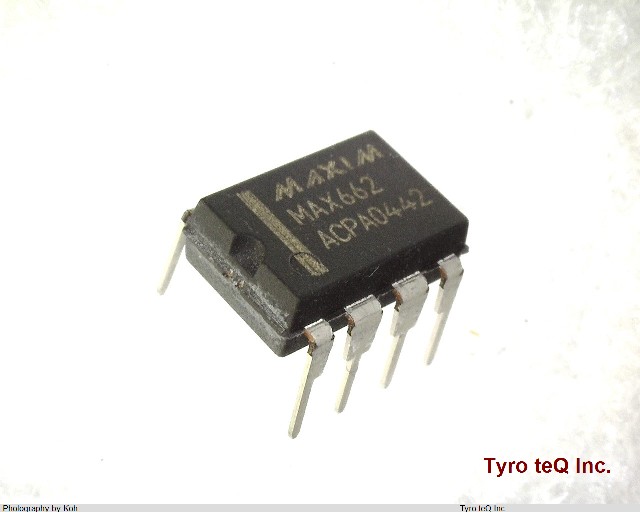

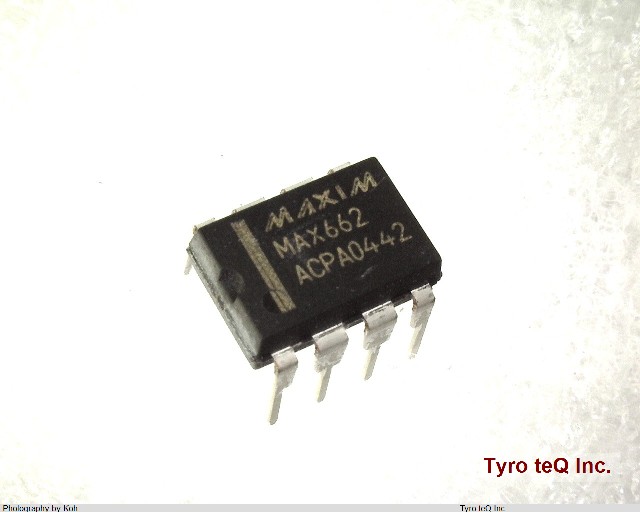

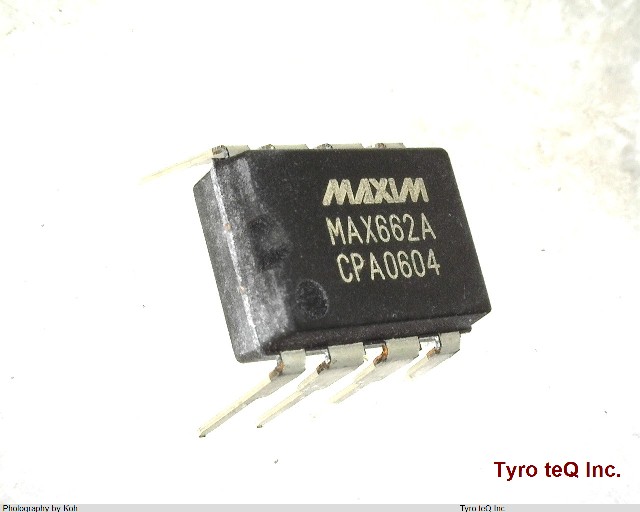

Name: MAX662ACPA
Brand: MAXIM
SKU: 230000244-0000-0000-0000

MAX662ACPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX662ACPA の詳細情報

型番	MAX662ACPA
メーカー	MAXIM
データシート
Analog IC - Other Type	SWITCHED CAPACITOR REGULATOR
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	4.75 V
Input Voltage-Min (V)	4.75
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Length (mm)	9.375
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Current-Max	0.03 A
Output Voltage-Nom	12 V
Output Voltage-Nom (V)	12
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	0.5 mA
Supply Current-Max (mA)	0.5
Surface Mount	NO
Switcher Configuration	DOUBLER INVERTER
Switching Frequency-Max	500 kHz
Switching Frequency-Max (kHz)	500
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
Width (mm)	7.62
