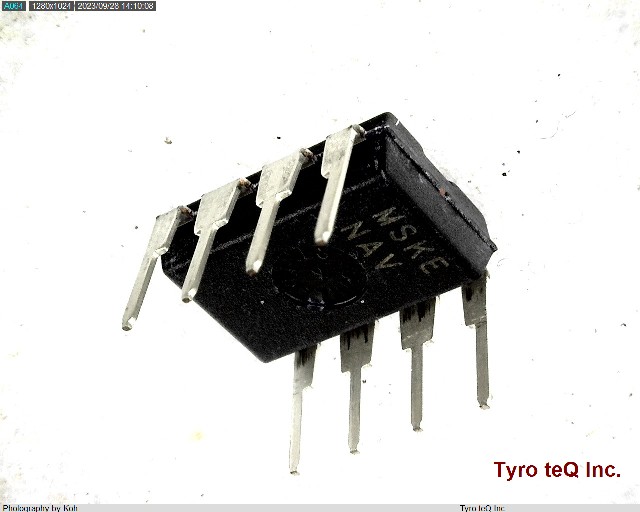

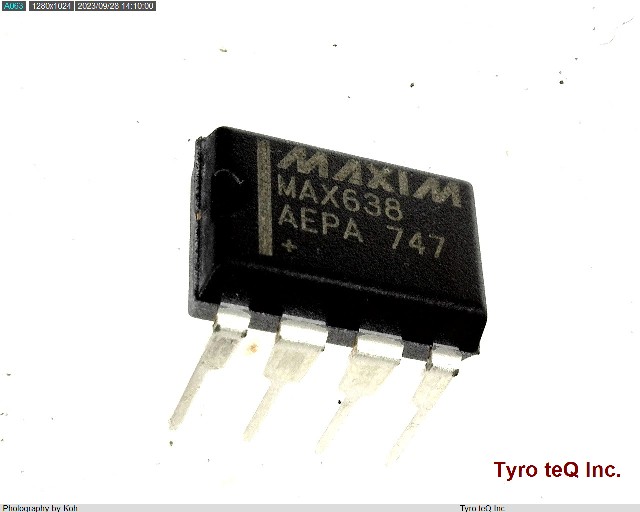

MAX638AEPA+

Name: MAX638AEPA+
Brand: MAXIM
SKU: 400067434-0000-0000-0000

MAX638AEPA+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX638AEPA+ の詳細情報

型番	MAX638AEPA+
メーカー	MAXIM
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	16.5 V
Input Voltage-Min	5 V
Input Voltage-Nom	12 V
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.375 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Current-Max	0.525 A
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Switching Regulator or Controllers
Supply Current-Max (Isup)	0.6 mA
Surface Mount	NO
Switcher Configuration	BUCK
Switching Frequency-Max	65 kHz
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
