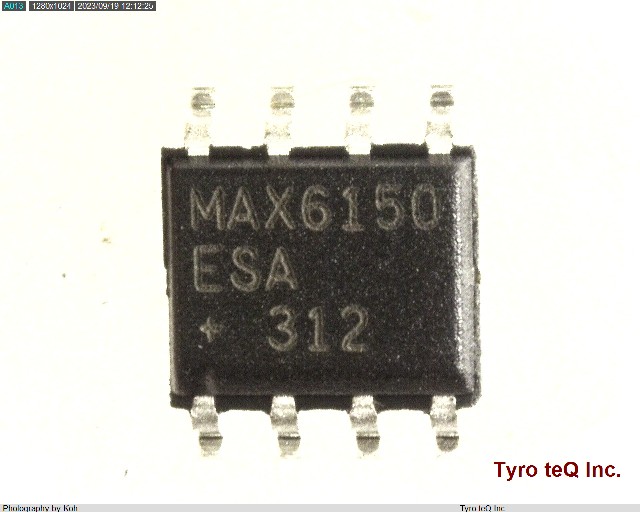

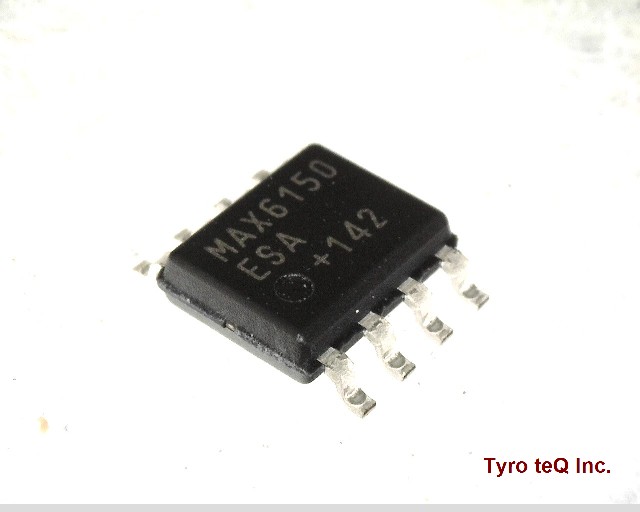

MAX6150ESA データシート

Name: MAX6150ESA
Brand: MAXIM
SKU: 230006774-0000-0000-0000

MAX6150ESA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX6150ESA の詳細情報

型番	MAX6150ESA
メーカー	MAXIM
データシート
Analog IC - Other Type	THREE TERMINAL VOLTAGE REFERENCE
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Number of Functions	1
Number of Outputs	1
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output Voltage-Max	5.1 V
Output Voltage-Min	4.9 V
Output Voltage-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Sub Category	Voltage References
Supply Current-Max (Isup)	125 mA
Supply Voltage-Max (Vsup)	12.6 V
Supply Voltage-Min (Vsup)	5.2 V
Supply Voltage-Nom (Vsup)	5.2 V
Surface Mount	YES
Temp Coef of Voltage-Max	50 ppm/Cel
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Trim/Adjustable Output	NO V
Voltage Tolerance-Max	2 %
Width	3.9 mm
