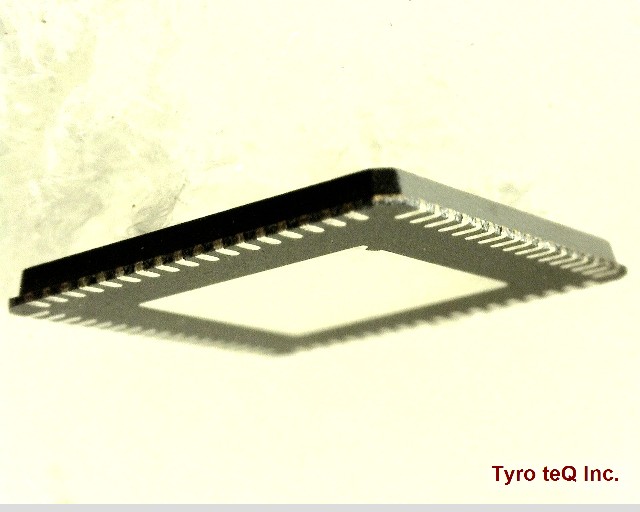

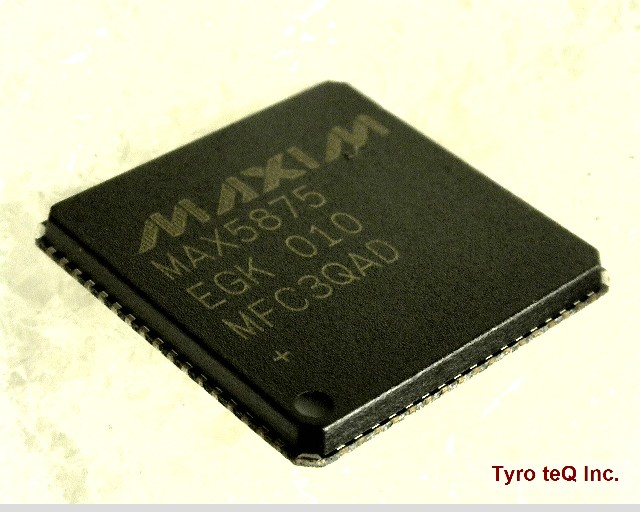

MAX5875EGKD データシート Max02

MAX5875EGKD - MAXIM の商品詳細ページです。

1
No Image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

MAX5875EGKD の詳細情報

  • 仕様・詳細
  • メーカー情報
型番MAX5875EGKD
メーカーMAXIM
データシートProduct_list_pdf
Analog Output Voltage-Max 1.1 V
Analog Output Voltage-Min -0.5 V
Converter Type D/A CONVERTER
Input Bit Code OFFSET BINARY, 2'S COMPLEMENT BINARY
Input Format PARALLEL, WORD
JESD-30 Code S-XQCC-N68
JESD-609 Code e0
Length 10 mm
Moisture Sensitivity Level 3
Number of Bits 16
Number of Functions 1
Number of Terminals 68
Operating Temperature-Max 85 Cel
Operating Temperature-Min -40 Cel
Package Body Material UNSPECIFIED
Package Code HVQCCN
Package Equivalence Code LCC68,.4SQ,20
Package Shape SQUARE
Package Style CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Power Supplies 1.8,3.3 V
Qualification Status Not Qualified
Seated Height-Max 0.9 mm
Settling Time-Nom (tstl) 0.014 us
Sub Category Other Converters
Supply Current-Max 56 mA
Supply Voltage-Nom 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form NO LEAD
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 10 mm
会社名称Maxim Integrated Products, Inc.
設立1983
所在地160 Rio Robles San Jose, CA 95134 USA
URLhttp://www.maxim-ic.com/
