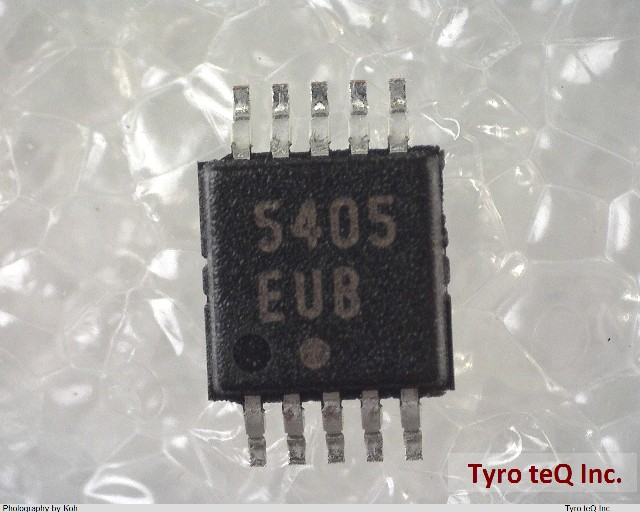

MAX5405EUB データシート

Name: MAX5405EUB
Brand: MAXIM
SKU: 230422056-0000-0000-0000

MAX5405EUB - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX5405EUB の詳細情報

型番	MAX5405EUB
メーカー	MAXIM
データシート
Control Interface	2-WIRE SERIAL
Converter Type	DIGITAL POTENTIOMETER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e3
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	2
Number of Positions	256
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	2.7/5.5 V
Power Supplies (V)	3/5
Qualification Status	Not Qualified
Resistance Law	LINEAR
Resistor Terminal Voltage-Max	5 V
Resistor Terminal Voltage-Max (V)	5
Resistor Terminal Voltage-Min	0 V
Resistor Terminal Voltage-Min (V)	0
Seated Height-Max	1.1 mm
Seated Height-Max (mm)	1.1
Sub Category	Digital Potentiometers
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	BICMOS
Temperature Coefficient-Nom	35 ppm/Cel
Temperature Coefficient-Nom (ppm/Cel)	35
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Total Resistance-Nom	100000 ohm
Total Resistance-Nom (ohm)	100000
Width	3 mm
Width (mm)	3
