MAX528CPP データシート

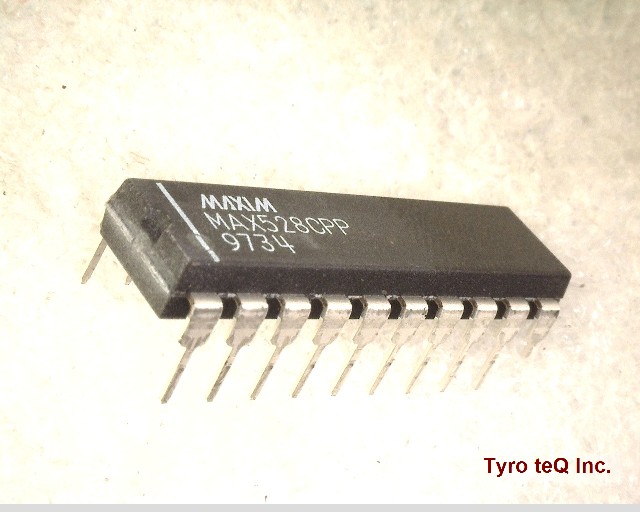

Name: MAX528CPP
Brand: MAXIM
SKU: 230039372-0000-0000-0000

MAX528CPP - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX528CPP の詳細情報

型番	MAX528CPP
メーカー	MAXIM
データシート
Analog Output Voltage-Max	2.25 V
Analog Output Voltage-Max (V)	2.25
Analog Output Voltage-Min	0 V
Analog Output Voltage-Min (V)	0
Converter Type	D/A CONVERTER
DLA Qualification	Not Qualified
Input Bit Code	BINARY
Input Format	SERIAL
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	26.16 mm
Length (mm)	26.16
Linearity Error-Max (EL)	0.3906 %
Linearity Error-Max (EL) (%)	0.3906
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Bits	8
Number of Functions	8
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	12,GND/-5 V
Power Supplies (V)	12,GND/-5
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Settling Time-Max	2 us
Settling Time-Nom (tstl)	1 us
Sub Category	Other Converters
Supply Current-Max	9 mA
Supply Voltage-Nom	12 V
Surface Mount	NO
Technology	BICMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
