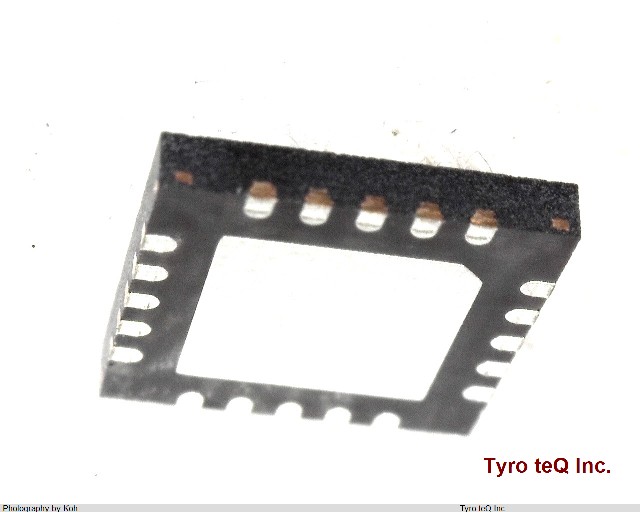

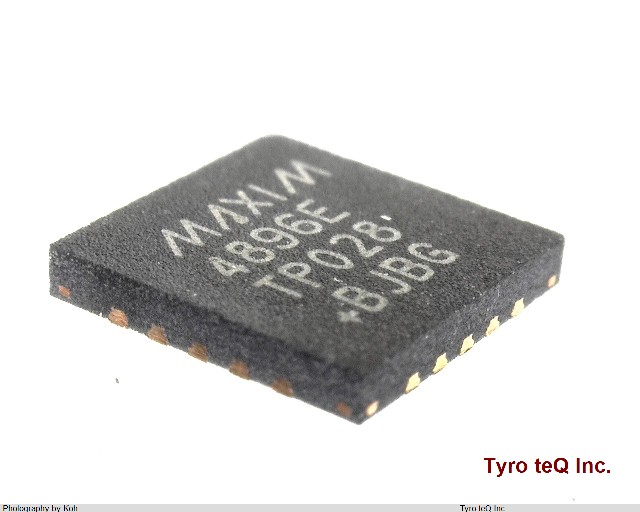

MAX4896ETP+ データシート

Name: MAX4896ETP+
Brand: MAXIM
SKU: 230484691-0000-0000-0000

MAX4896ETP+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4896ETP+ の詳細情報

型番	MAX4896ETP+
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Driver Number of Bits	8
Interface IC Type	INTERFACE CIRCUIT
J-STD-609 Code	e3
JESD-30 Code	S-XQCC-N20
JESD-609 Code	e3
Length	5 mm
Length (mm)	5
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	0.1 A
Output Current-Max (A)	0.1
Package Body Material	UNSPECIFIED
Package Code	HVQCCN
Package Equivalence Code	LCC20,.20SQ,25
Package Shape	SQUARE
Package Style	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Power Supplies (V)	3/5
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Peripheral Drivers
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	2.7 V
Supply Voltage-Min (V)	2.7
Supply Voltage-Nom	3.6 V
Supply Voltage-Nom (V)	3.6
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	5 mm
Width (mm)	5
