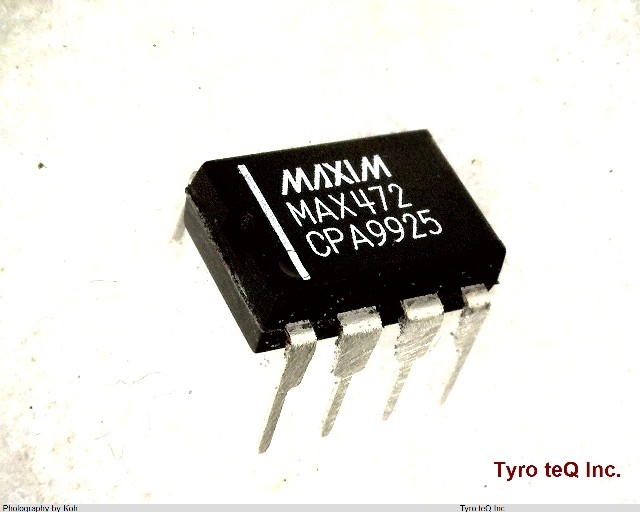

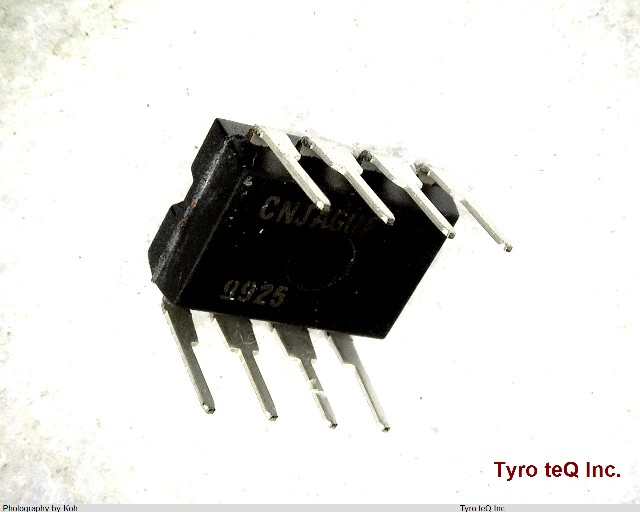

MAX472CPA データシート

Name: MAX472CPA
Brand: MAXIM
SKU: 230337679-0000-0000-0000

MAX472CPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX472CPA の詳細情報

型番	MAX472CPA
メーカー	MAXIM
データシート
Adjustable Threshold	NO
Analog IC - Other Type	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/36 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Other Analog ICs
Supply Current-Max (Isup)	0.048 mA
Supply Voltage-Max (Vsup)	36 V
Supply Voltage-Min (Vsup)	3 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
