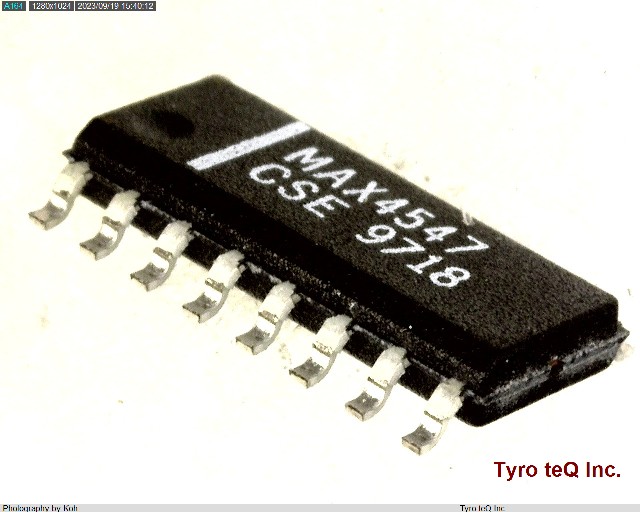

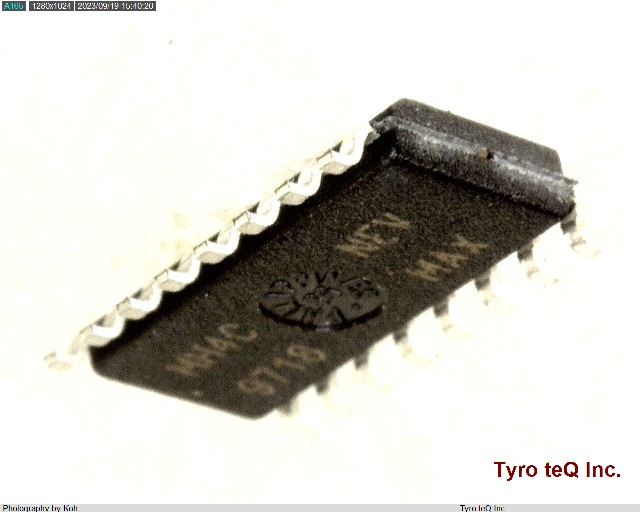

MAX4547CSE

Name: MAX4547CSE
Brand: MAXIM
SKU: 230006600-0000-0000-0000

MAX4547CSE - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4547CSE の詳細情報

型番	MAX4547CSE
メーカー	MAXIM
Additional Feature	SPDT
Analog IC - Other Type	AUDIO/VIDEO SWITCH
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	9.9 mm
Length (mm)	9.9
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-6 V
Neg Supply Voltage-Min (Vsup)	-2.7 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Max (V)	-6
Negative Supply Voltage-Min (V)	-2.7
Negative Supply Voltage-Nom (V)	-5
Number of Channels	1
Number of Functions	2
Number of Terminals	16
Off-state Isolation-Nom	82 dB
Off-state Isolation-Nom (dB)	82
On-state Resistance Match-Nom	0.5 ohm
On-state Resistance Match-Nom (ohm)	0.5
On-state Resistance-Max (Ron)	20 ohm
On-state Resistance-Max (ohm)	20
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Supply Voltage-Max (Vsup)	6 V
Supply Voltage-Min (Vsup)	2.7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Switch-off Time-Max	100 ns
Switch-on Time-Max	150 ns
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3.9 mm
