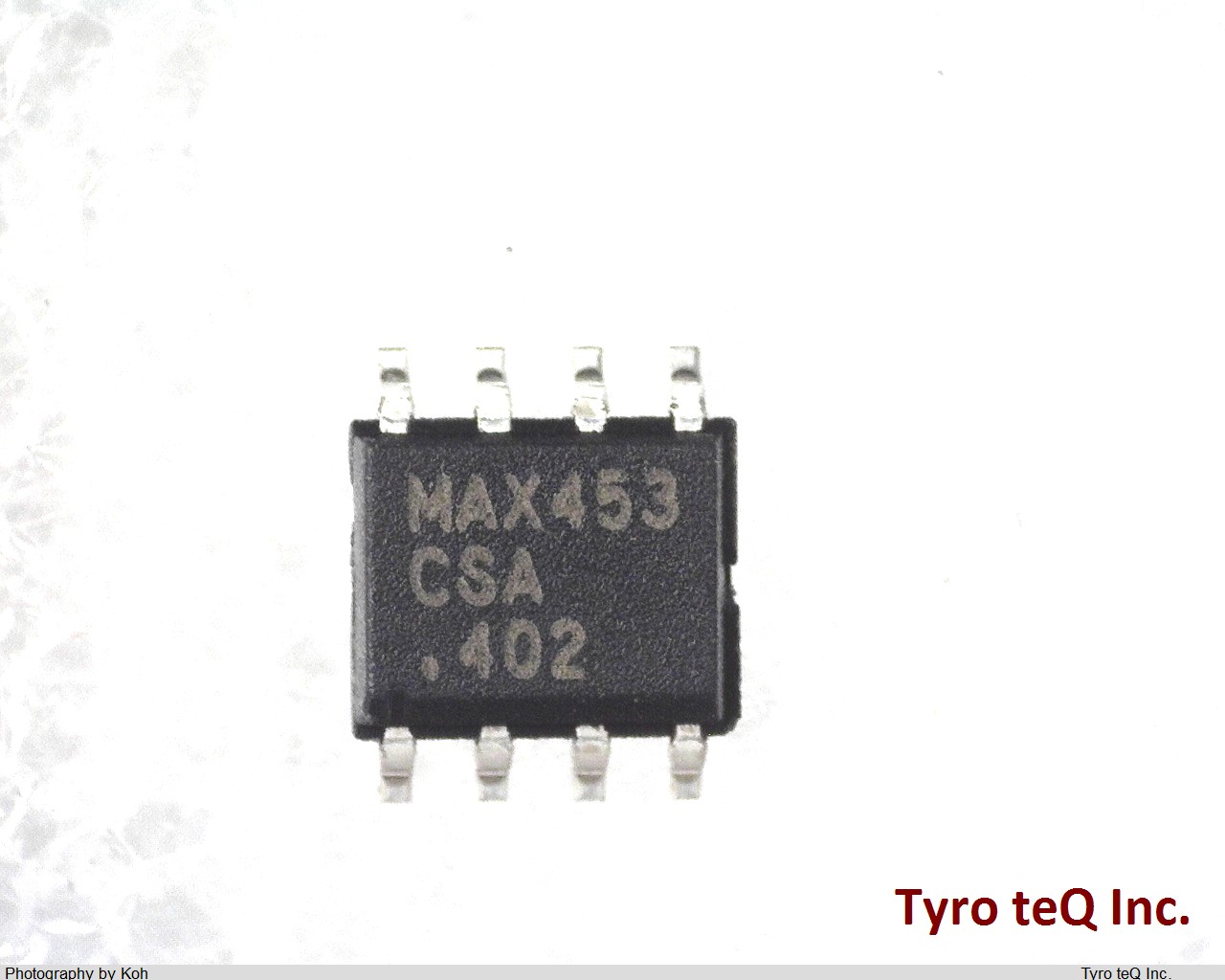

MAX453CSA

Name: MAX453CSA
Brand: MAXIM
SKU: 230001600-0000-0000-0000

MAX453CSA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX453CSA の詳細情報

型番	MAX453CSA
メーカー	MAXIM
Amplifier Type	OPERATIONAL AMPLIFIER
Average Bias Current-Max (IIB)	0.01 uA
Common-mode Reject Ratio-Nom	80 dB
Input Offset Voltage-Max	5000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Nom	300 V/us
Sub Category	Operational Amplifier
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	50000 kHz
Width	3.9 mm
