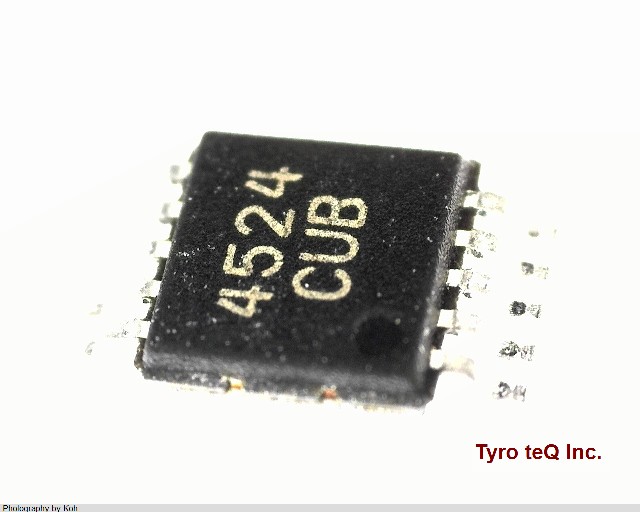

MAX4524CUB データシート

Name: MAX4524CUB
Brand: MAXIM
SKU: 230006575-0000-0000-0000

MAX4524CUB - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4524CUB の詳細情報

型番	MAX4524CUB
メーカー	MAXIM
データシート
Additional Feature	ALSO OPERATE WITH 5V SINGLE SUPPLY
Analog IC - Other Type	SINGLE-ENDED MULTIPLEXER
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	S-PDSO-G10
JESD-609 Code	e0
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Channels	4
Number of Functions	1
Number of Terminals	10
Off-state Isolation-Nom	75 dB
Off-state Isolation-Nom (dB)	75
On-state Resistance Match-Nom	2 ohm
On-state Resistance Match-Nom (ohm)	2
On-state Resistance-Max (Ron)	400 ohm
On-state Resistance-Max (ohm)	400
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	TSSOP
Package Equivalence Code	TSSOP10,.19,20
Package Shape	SQUARE
Package Style	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Power Supplies (V)	3/5
Qualification Status	Not Qualified
Seated Height-Max	1.1 mm
Signal Current-Max	0.02 A
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.01 mA
Supply Voltage-Max (Vsup)	12 V
Supply Voltage-Min (Vsup)	2 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Switch-off Time-Max	200 ns
Switch-on Time-Max	300 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
