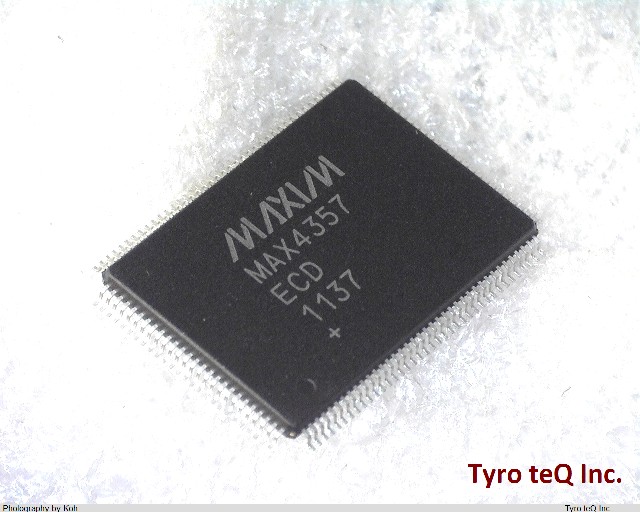

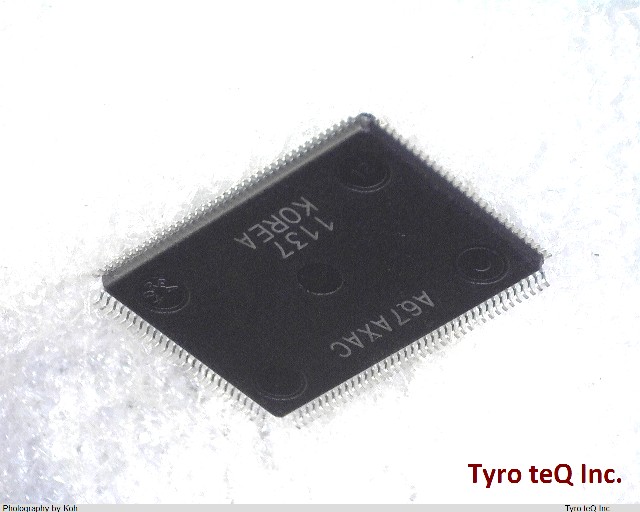

MAX4357ECD

Name: MAX4357ECD
Brand: MAXIM
SKU: 230442705-0000-0000-0000

MAX4357ECD - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4357ECD の詳細情報

型番	MAX4357ECD
メーカー	MAXIM
Analog IC - Other Type	CROSS POINT SWITCH
JESD-30 Code	R-PQFP-G128
JESD-609 Code	e0
Length	20 mm
Moisture Sensitivity Level	3
Neg Supply Voltage-Max (Vsup)	-5.25 V
Neg Supply Voltage-Min (Vsup)	-2.25 V
Neg Supply Voltage-Nom (Vsup)	-3 V
Number of Channels	32
Number of Functions	1
Number of Terminals	128
Off-state Isolation-Nom	112 dB
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Output	SEPARATE OUTPUT V
Package Body Material	PLASTIC/EPOXY
Package Code	LFQFP
Package Equivalence Code	QFP128,.63X.87,20
Package Shape	RECTANGULAR
Package Style	FLATPACK, LOW PROFILE, FINE PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	+-3/+-5/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.6 mm
Sub Category	Multiplexer or Switches
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	2.25 V
Supply Voltage-Nom (Vsup)	3 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	20
Width	14 mm
