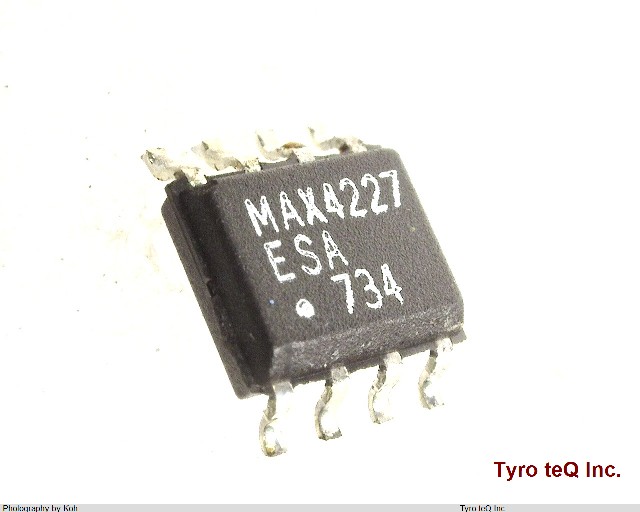

MAX4227ESA

Name: MAX4227ESA
Brand: MAXIM
SKU: 400063088-0000-0000-0000

MAX4227ESA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4227ESA の詳細情報

型番	MAX4227ESA
メーカー	MAXIM
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Bias Current-Max (IIB) @25C	25 uA
Common-mode Reject Ratio-Nom	61 dB
Common-mode Reject Ratio-Nom (dB)	61
DLA Qualification	Not Qualified
Frequency Compensation	YES (AVCL>=2)
Input Offset Voltage-Max	6000 uV
Input Offset Voltage-Max (uV)	6000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Slew Rate-Nom	1700 V/us
Slew Rate-Nom (V/us)	1700
Sub Category	Operational Amplifier
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	330000 kHz
Unity Gain BW-Nom (kHz)	330000
Width	3.9 mm
Width (mm)	3.9
