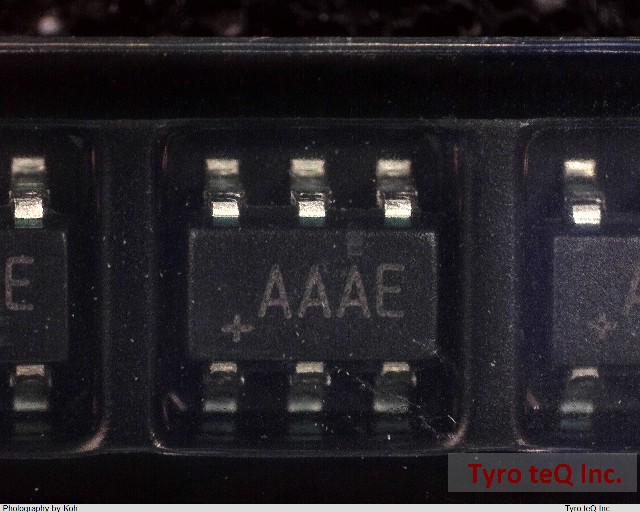

MAX4224EUT

Name: MAX4224EUT
Brand: MAXIM
SKU: 230370385-0000-0000-0000

MAX4224EUT - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4224EUT の詳細情報

型番	MAX4224EUT
メーカー	MAXIM
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Bias Current-Max (IIB) @25C	20 uA
Common-mode Reject Ratio-Nom	50 dB
Common-mode Reject Ratio-Nom (dB)	50
DLA Qualification	Not Qualified
Frequency Compensation	YES (AVCL>=2)
Input Offset Voltage-Max	6000 uV
Input Offset Voltage-Max (uV)	6000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Low-Offset	NO
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Slew Rate-Min	1400 V/us
Slew Rate-Nom	1100 V/us
Slew Rate-Nom (V/us)	1100
Sub Category	Operational Amplifier
Supply Voltage Limit-Max	12 V
Supply Voltage-Nom (V)	5
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
