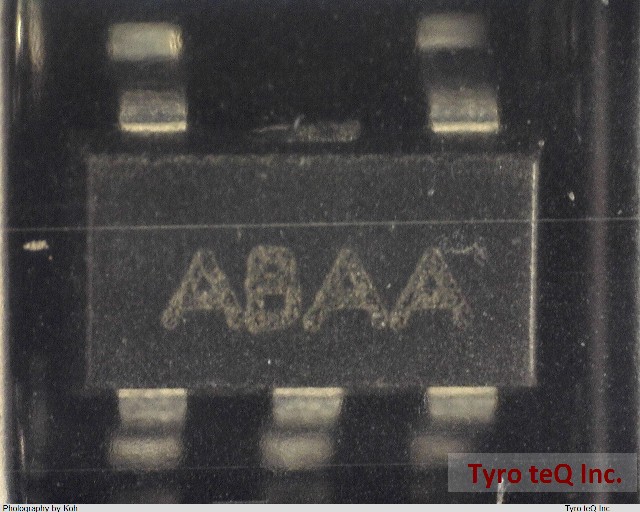

MAX4201EUK

Name: MAX4201EUK
Brand: MAXIM
SKU: 230386666-0000-0000-0000

MAX4201EUK - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4201EUK の詳細情報

型番	MAX4201EUK
メーカー	MAXIM
Amplifier Type	BUFFER
Average Bias Current-Max (IIB)	10 uA
Bandwidth (3dB)-Nom	780 MHz
Bandwidth (3dB)-Nom (MHz)	780
Bias Current-Max (IIB) @25C	10 uA
Bias Current-Max (IIB) @25C (uA)	10
Input Offset Voltage-Max	15000 uV
Input Offset Voltage-Max (uV)	15000
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G5
JESD-609 Code	e0
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage Limit-Max (V)	-6
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	5
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP5/6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5 V
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Slew Rate-Nom	4200 V/us
Slew Rate-Nom (V/us)	4200
Sub Category	Buffer Amplifier
Supply Current-Max	4 mA
Supply Current-Max (mA)	4
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
