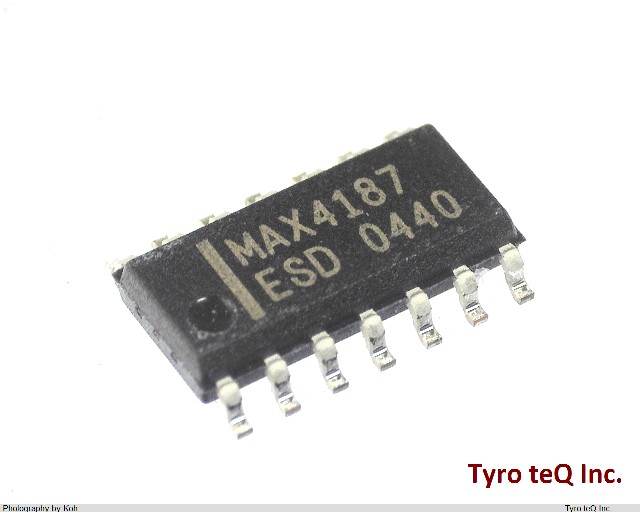

MAX4187ESD

Name: MAX4187ESD
Brand: MAXIM
SKU: 230442699-0000-0000-0000

MAX4187ESD - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4187ESD の詳細情報

型番	MAX4187ESD
メーカー	MAXIM
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	CURRENT-FEEDBACK
Bias Current-Max (IIB) @25C	12 uA
Common-mode Reject Ratio-Nom	58 dB
Frequency Compensation	YES
Input Offset Voltage-Max	7000 uV
JESD-30 Code	R-PDSO-G14
JESD-609 Code	e0
Length	8.65 mm
Low-Bias	NO
Low-Offset	NO
Micropower	NO
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Number of Functions	4
Number of Terminals	14
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP14,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power	NO
Power Supplies	+-2.25/+-5.5/4.5/11 V
Programmable Power	NO
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	170 V/us
Slew Rate-Nom	320 V/us
Sub Category	Operational Amplifier
Supply Current-Max	4.8 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	270000 kHz
Wideband	YES
Width	3.9 mm
