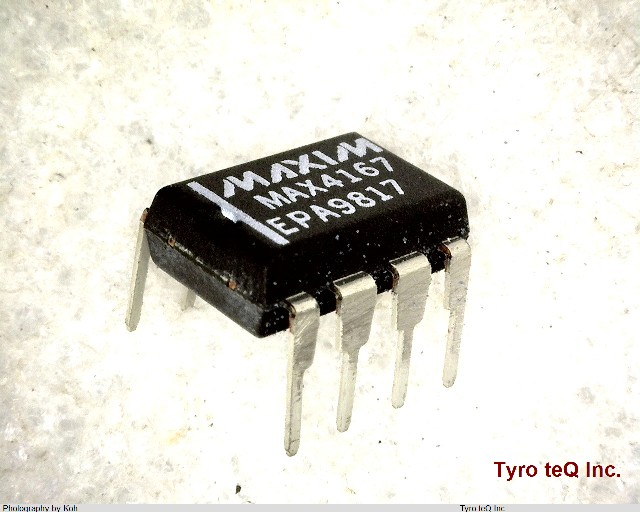

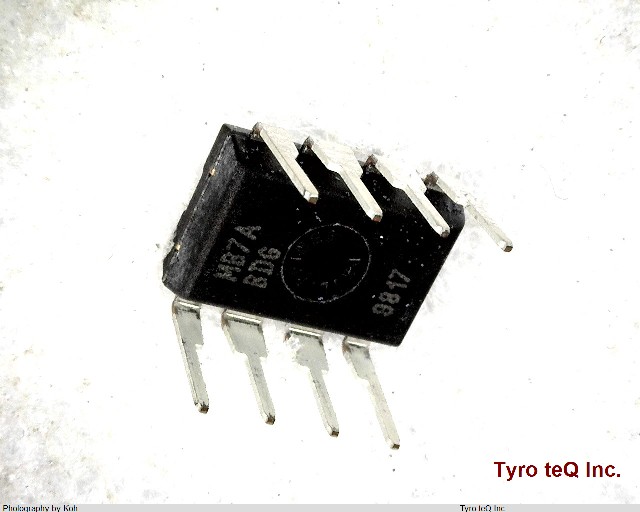

MAX4167EPA データシート

Name: MAX4167EPA
Brand: MAXIM
SKU: 230006478-0000-0000-0000

MAX4167EPA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX4167EPA の詳細情報

型番	MAX4167EPA
メーカー	MAXIM
データシート
Amp Architecture	VOLTAGE-FEEDBACK
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	0.225 uA
Average Bias Current-Max (IIB) (uA)	0.225
Bias Current-Max (IIB) @25C	0.15 uA
Bias Current-Max (IIB) @25C (uA)	0.15
Common-mode Reject Ratio-Nom	93 dB
Common-mode Reject Ratio-Nom (dB)	93
DLA Qualification	Not Qualified
Frequency Compensation	YES
Input Offset Voltage-Max	1000 uV
Input Offset Voltage-Max (uV)	1000
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e0
Length	9.375 mm
Length (mm)	9.375
Low-Offset	NO
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-1.35/+-3.25/2.7/6.5 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Slew Rate-Nom	2 V/us
Sub Category	Operational Amplifier
Supply Current-Max	3.4 mA
Supply Voltage Limit-Max	7 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	BIPOLAR
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	5000 kHz
Voltage Gain-Min	2000
Width	7.62 mm
