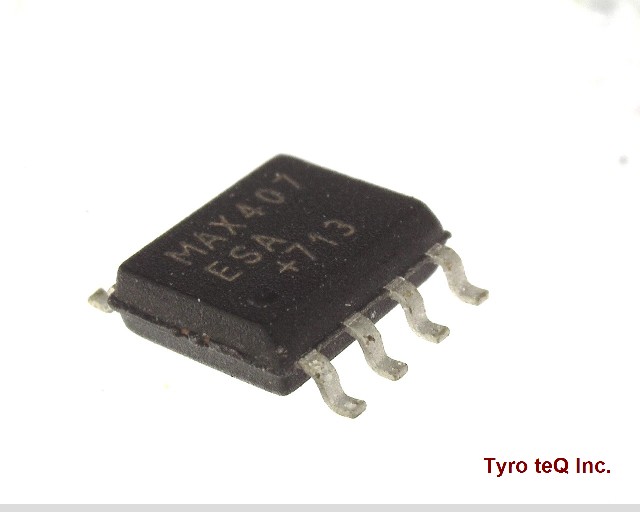

MAX407ESA データシート

Name: MAX407ESA
Brand: MAXIM
SKU: 230006456-0000-0000-0000

MAX407ESA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX407ESA の詳細情報

型番	MAX407ESA
メーカー	MAXIM
データシート
Amp Architecture	VOLTAGE-FEEDBACK
Amplifier Type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB)	5.0E-5 uA
Average Bias Current-Max (IIB) (uA)	5.0E-5
Bias Current-Max (IIB) @25C	1.0E-5 uA
Common-mode Reject Ratio-Min	60 dB
Common-mode Reject Ratio-Nom	60 dB
Frequency Compensation	YES
Input Offset Voltage-Max	4000 uV
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Low-Bias	YES
Low-Offset	NO
Micropower	YES
Moisture Sensitivity Level	1
Neg Supply Voltage Limit-Max	-6 V
Neg Supply Voltage-Nom (Vsup)	-2.5 V
Number of Functions	2
Number of Terminals	8
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Packing Method	TAPE AND REEL
Peak Reflow Temperature (Cel)	260
Power Supplies	+-2.5/+-5/10 V
Qualification Status	Not Qualified
Seated Height-Max	1.75 mm
Slew Rate-Min	0.003 V/us
Slew Rate-Nom	0.005 V/us
Sub Category	Operational Amplifier
Supply Current-Max	0.003 mA
Supply Voltage Limit-Max	6 V
Supply Voltage-Nom (Vsup)	2.5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Unity Gain BW-Nom	8 kHz
Voltage Gain-Min	100000
Width	3.9 mm
