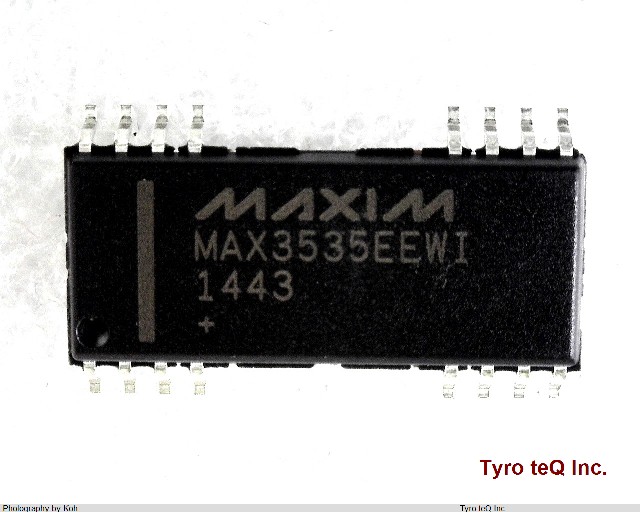

MAX3535EEWI データシート

Name: MAX3535EEWI
Brand: MAXIM
SKU: 230370356-0000-0000-0000

MAX3535EEWI - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3535EEWI の詳細情報

型番	MAX3535EEWI
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G28
Length (mm)	17.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max (Cel)	85
Operating Temperature-Min (Cel)	-40
Out Swing-Min (V)	1.5
Output Low Current-Max (mA)	4
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies (V)	3.3,5
Receive Delay-Max (ns)	855
Receiver Number of Bits	1
Seated Height-Max (mm)	2.65
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	70
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	3
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max (ns)	1560
Width (mm)	7.5
