MAX3430CSA+ データシート

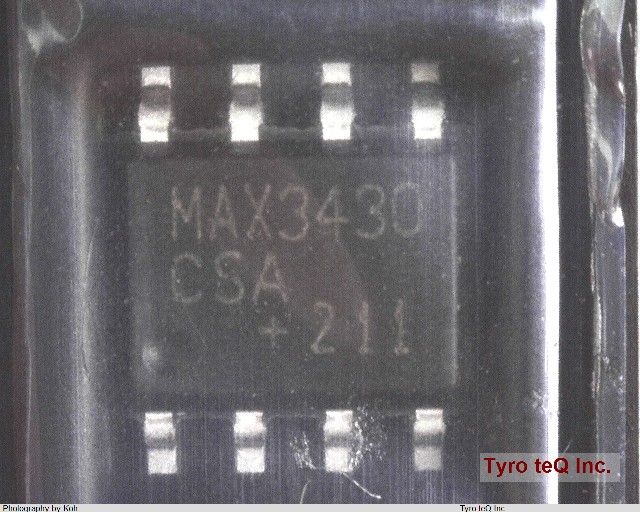

Name: MAX3430CSA+
Brand: MAXIM
SKU: 230370345-0000-0000-0000

MAX3430CSA+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3430CSA+ の詳細情報

型番	MAX3430CSA+
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
High Level Input Current-Max (A)	1.0E-6
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485; TIA-485
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
Length (mm)	9.375
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	1.5
Output Low Current-Max (mA)	1.6
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3.3
Receive Delay-Max (ns)	120
Receiver Number of Bits	1
Seated Height-Max (mm)	4.572
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	10
Supply Voltage-Max (V)	3.63
Supply Voltage-Min (V)	2.97
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	BICMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max (ns)	1500
Width (mm)	7.62
