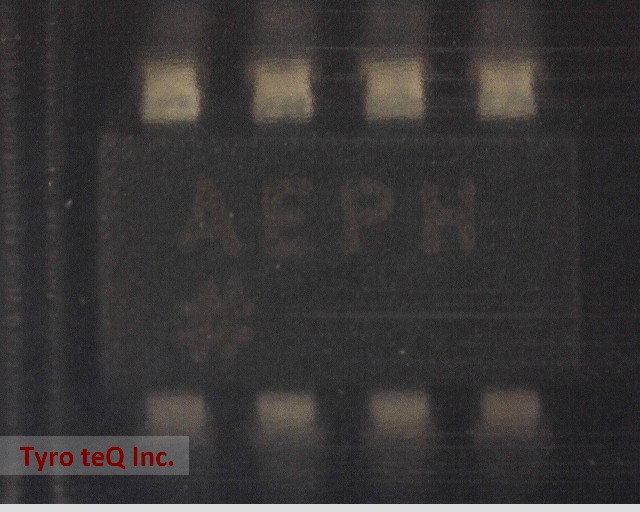

MAX3362EKA#TG16
1
-
- 個
２営業日以内に回答いたします
MAX3362EKA#TG16 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | MAX3362EKA#TG16 |
|---|---|
| メーカー | MAXIM |
| DLA Qualification | Not Qualified |
| Differential Output | YES |
| Driver Number of Bits | 1 |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Interface IC Type | LINE TRANSCEIVER |
| Interface Standard | EIA-422; EIA-485 |
| J-STD-609 Code | e3 |
| JESD-30 Code | R-PDSO-G8 |
| Length (mm) | 2.9 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Out Swing-Min (V) | 1.5 |
| Output Low Current-Max (mA) | 1 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | TSSOP8,.1 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH Meter |
| Peak Reflow Temperature (Cel) | 245 |
| Power Supplies (V) | 3.3 |
| Receive Delay-Max (ns) | 50 |
| Receiver Number of Bits | 1 |
| Seated Height-Max (mm) | 1.45 |
| Sub Category | Line Driver or Receivers |
| Supply Voltage-Max (V) | 3.465 |
| Supply Voltage-Min (V) | 3.135 |
| Supply Voltage-Nom (V) | 3.3 |
| Surface Mount | YES |
| Technology | BICMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch (mm) | 0.65 |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Transmit Delay-Max (ns) | 50 |
| Width (mm) | 1.625 |
| 会社名称 | Maxim Integrated Products, Inc. |
|---|---|
| 設立 | 1983 |
| 所在地 | 160 Rio Robles San Jose, CA 95134 USA |
| URL | http://www.maxim-ic.com/ |
