MAX3237CAI+ データシート

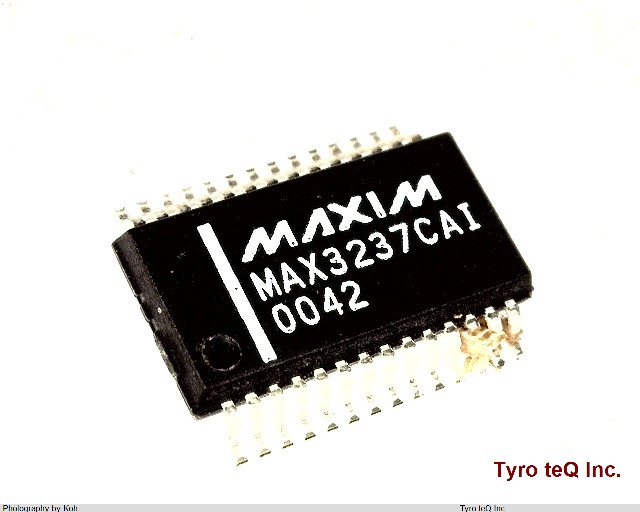

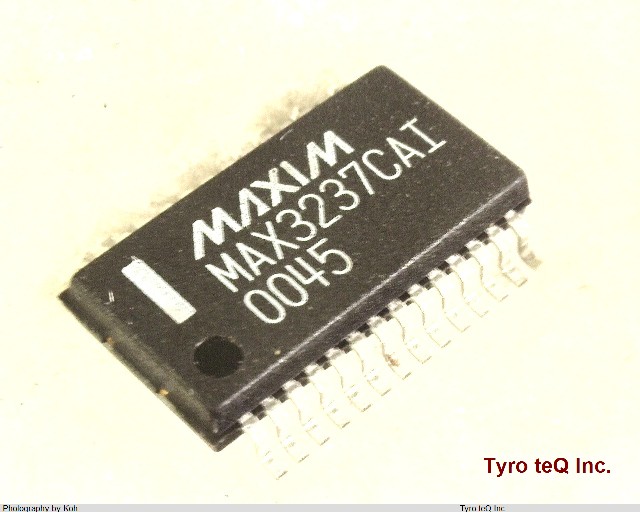

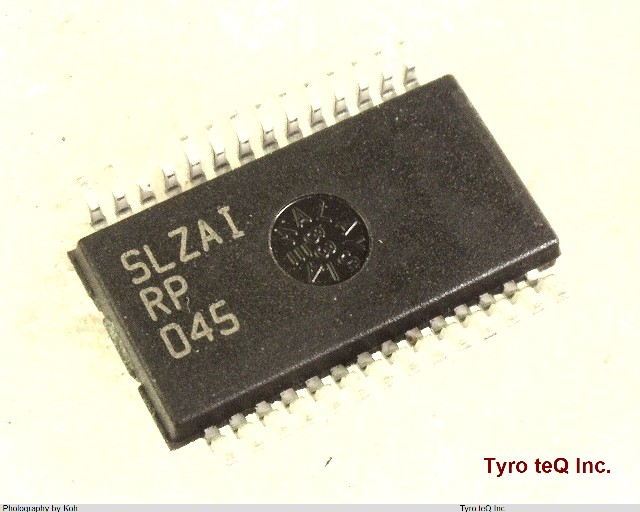

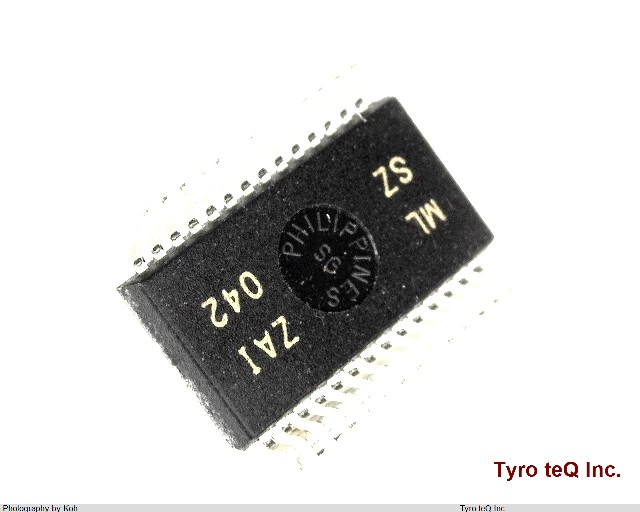

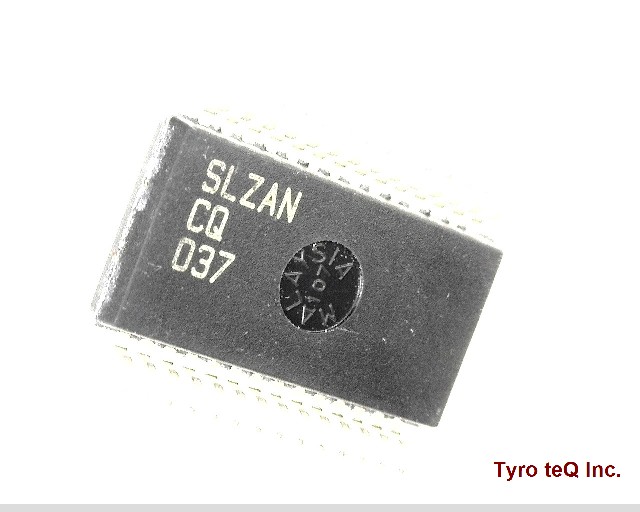

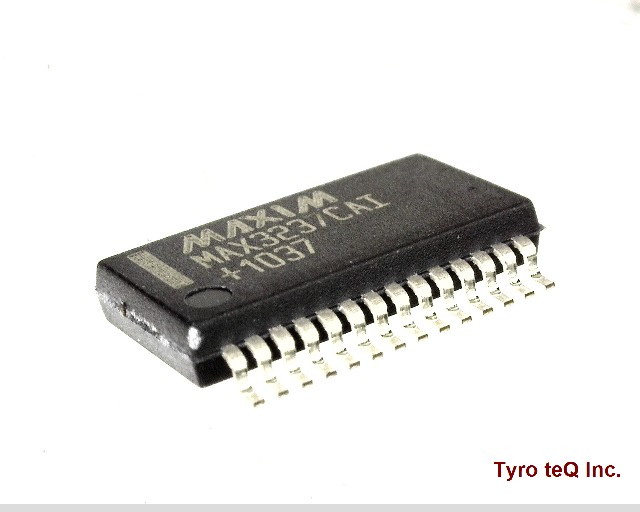

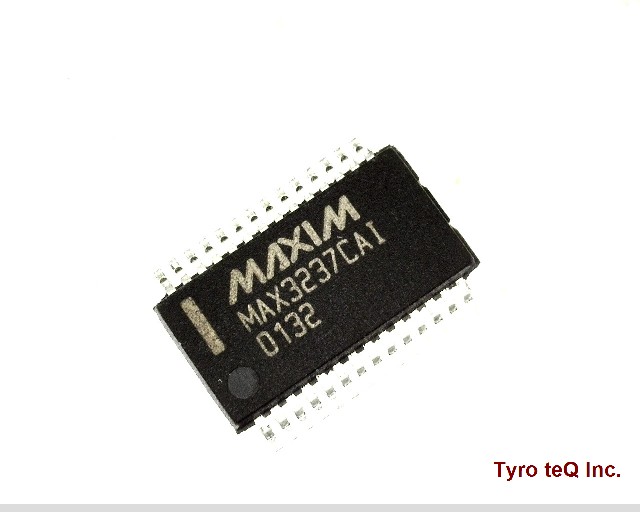

Name: MAX3237CAI+
Brand: MAXIM
SKU: 230002100-0000-0000-0000

MAX3237CAI+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3237CAI+ の詳細情報

型番	MAX3237CAI+
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	5
High Level Input Current-Max (A)	1.0E-6
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232; EIA-562
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G28
Length	10.2 mm
Length (mm)	10.2
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.4
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies (V)	3.3/5
Receive Delay-Max (ns)	0
Receiver Number of Bits	3
Seated Height-Max	1.99 mm
Seated Height-Max (mm)	1.99
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	2
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width (mm)	5.29
