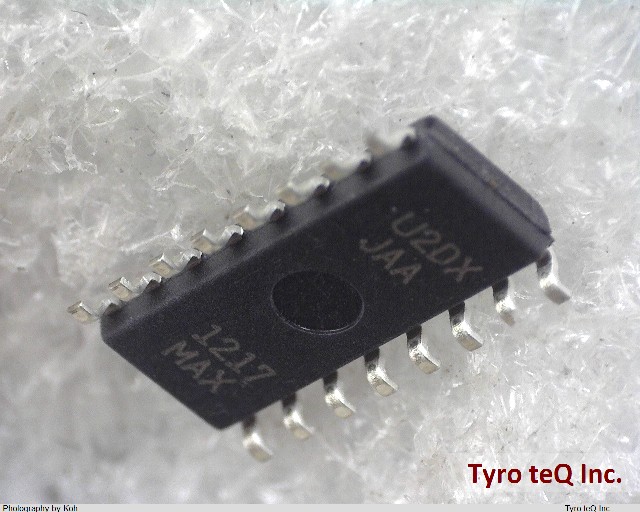

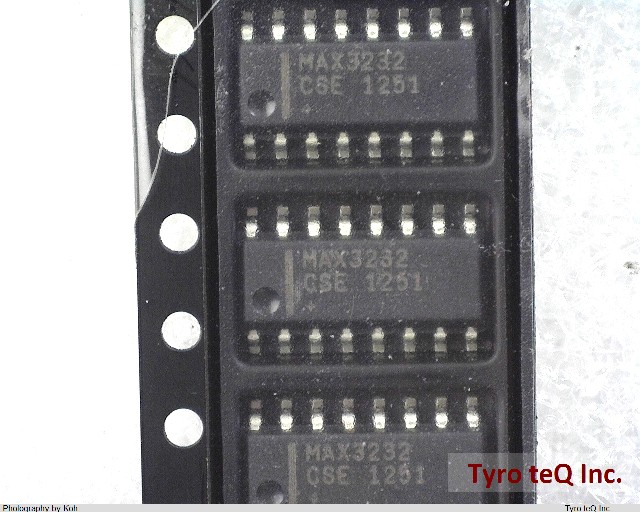

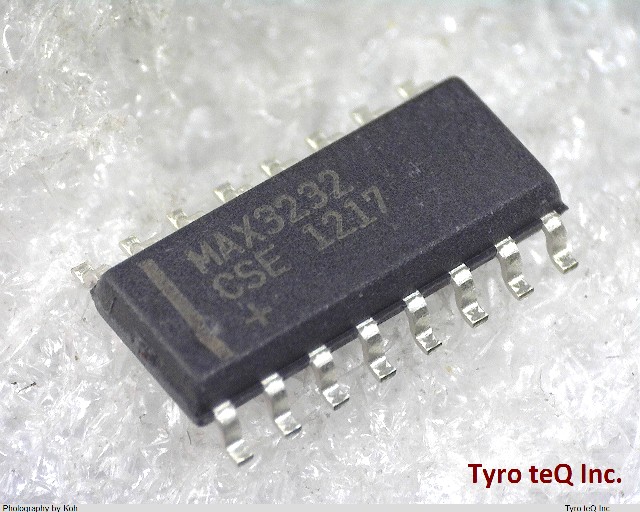

MAX3232CSE+ データシート

Name: MAX3232CSE+
Brand: MAXIM
SKU: 230001907-0000-0000-0000

MAX3232CSE+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3232CSE+ の詳細情報

型番	MAX3232CSE+
メーカー	MAXIM
データシート
Additional Feature	EXTERNAL CHARGE PUMP
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	2
High Level Input Current-Max (A)	1.0E-6
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232; EIA-562
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
Length (mm)	9.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Characteristics	TOTEM-POLE
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3.3/5
Receive Delay-Max (ns)	0
Receiver Number of Bits	2
Seated Height-Max (mm)	1.75
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	1
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	3
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width (mm)	3.9
