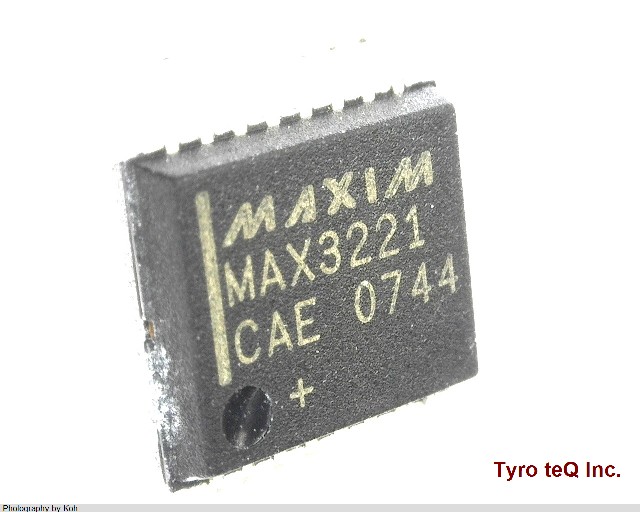

MAX3221CAE データシート

Name: MAX3221CAE
Brand: MAXIM
SKU: 230003370-0000-0000-0000

MAX3221CAE - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3221CAE の詳細情報

型番	MAX3221CAE
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	1
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232; TIA-232; V.24; V.28
J-STD-609 Code	e0
JESD-30 Code	R-PDSO-G16
Length	6.2 mm
Length (mm)	6.2
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	5
Output Characteristics	3-STATE
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies (V)	3.3/5
Receive Delay-Max (ns)	0
Receiver Number of Bits	1
Seated Height-Max	1.99 mm
Seated Height-Max (mm)	1.99
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	1
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.65 mm
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width (mm)	5.29
