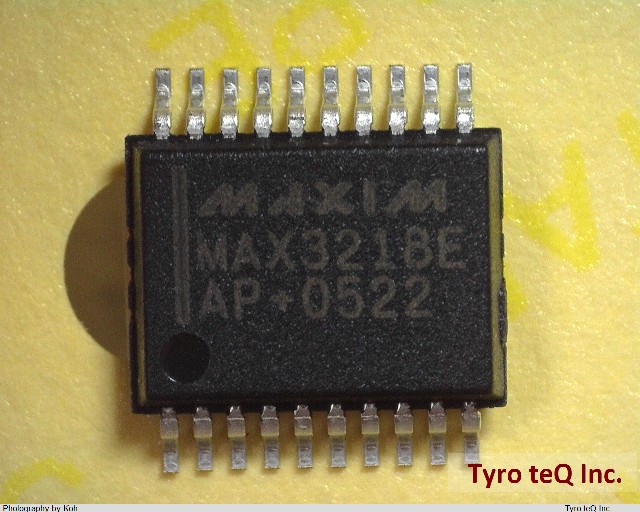

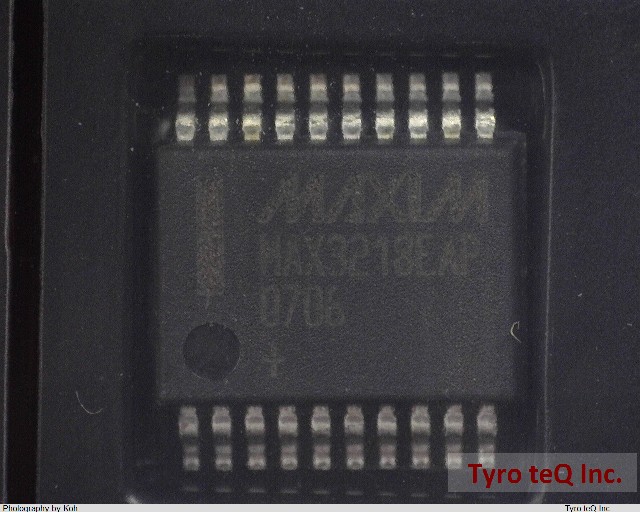

MAX3218EAP+

Name: MAX3218EAP+
Brand: MAXIM
SKU: 230038548-0000-0000-0000

MAX3218EAP+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3218EAP+ の詳細情報

型番	MAX3218EAP+
メーカー	MAXIM
Additional Feature	EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS; AUTO SHUTDOWN
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	2
High Level Input Current-Max (A)	1.0E-6
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; V.24; V.28; EIA-562
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	7.2 mm
Length (mm)	7.2
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Out Swing-Min (V)	5
Output Characteristics	3-STATE
Output Low Current-Max (mA)	1
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP20,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	1.8/4.25
Qualification Status	Not Qualified
Receive Delay-Max (ns)	1000
Receiver Number of Bits	2
Seated Height-Max (mm)	1.99
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	3
Supply Voltage-Max (V)	4.25
Supply Voltage-Min (V)	1.8
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max (ns)	2700
Width (mm)	5.29
