MAX317CPA+ データシート

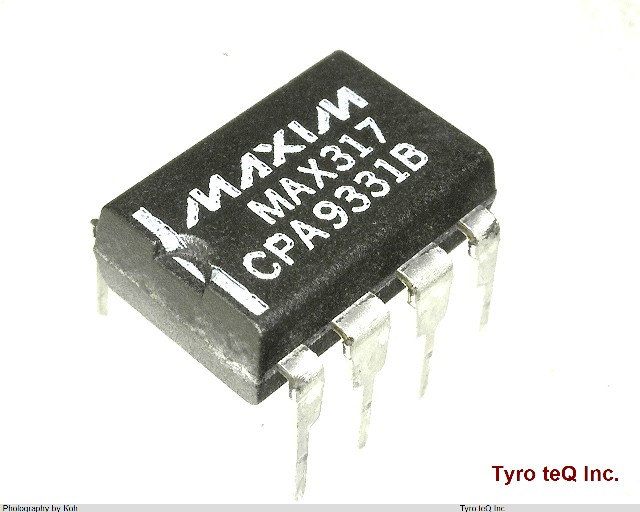

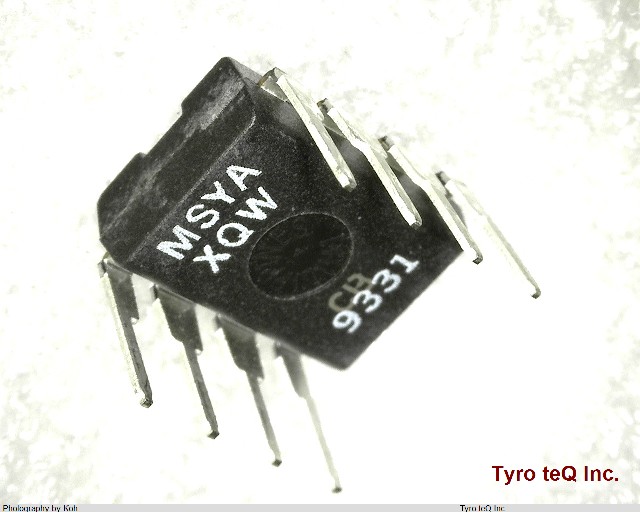

Name: MAX317CPA+
Brand: MAXIM
SKU: 230331723-0000-0000-0000

MAX317CPA+ - MAXIM の商品詳細ページです。

No Image

２営業日以内に回答いたします

MAX317CPA+ の詳細情報

型番	MAX317CPA+
メーカー	MAXIM
データシート
Analog IC - Other Type	SPST
JESD-30 Code	R-PDIP-T8
JESD-609 Code	e3
Length	9.375 mm
Moisture Sensitivity Level	1
Neg Supply Voltage-Nom (Vsup)	-15 V
Normal Position	NC V
Number of Channels	1
Number of Functions	1
Number of Terminals	8
Off-state Isolation-Nom	68 dB
On-state Resistance Match-Nom	2 ohm
On-state Resistance-Max (Ron)	35 ohm
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP8,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	5,12/+-15 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Sub Category	Multiplexer or Switches
Supply Current-Max (Isup)	0.005 mA
Supply Voltage-Nom (Vsup)	15 V
Surface Mount	NO
Switch-off Time-Max	145 ns
Switch-on Time-Max	175 ns
Switching	BREAK-BEFORE-MAKE V
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
