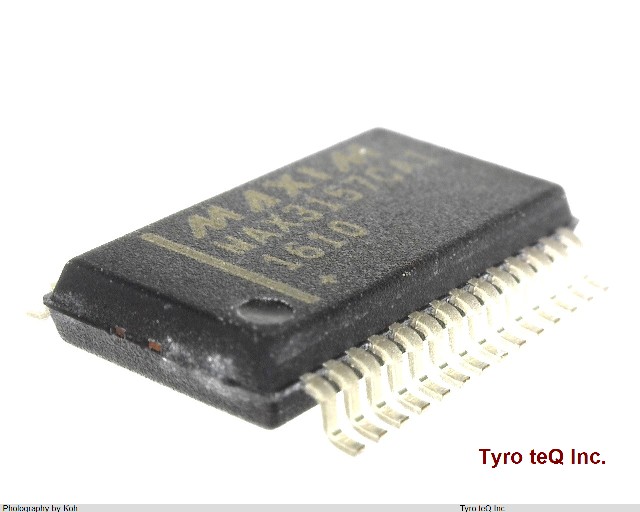

MAX3157CAI+ データシート

Name: MAX3157CAI+
Brand: MAXIM
SKU: 230370315-0000-0000-0000

MAX3157CAI+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3157CAI+ の詳細情報

型番	MAX3157CAI+
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-422; EIA-485
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G28
Length (mm)	10.2
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	1.5
Output Low Current-Max (mA)	4
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP28,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Receive Delay-Max (ns)	600
Receiver Number of Bits	1
Seated Height-Max (mm)	1.99
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	85
Supply Voltage-Max (V)	5.25
Supply Voltage-Min (V)	4.75
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	HYBRID
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch (mm)	0.65
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max (ns)	2000
Width (mm)	5.29
