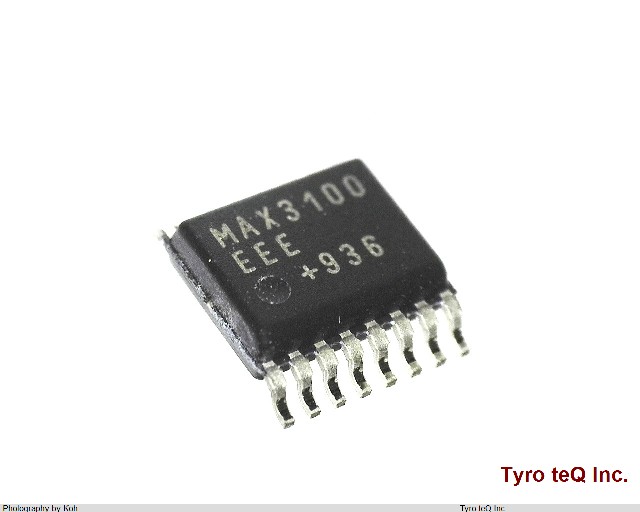

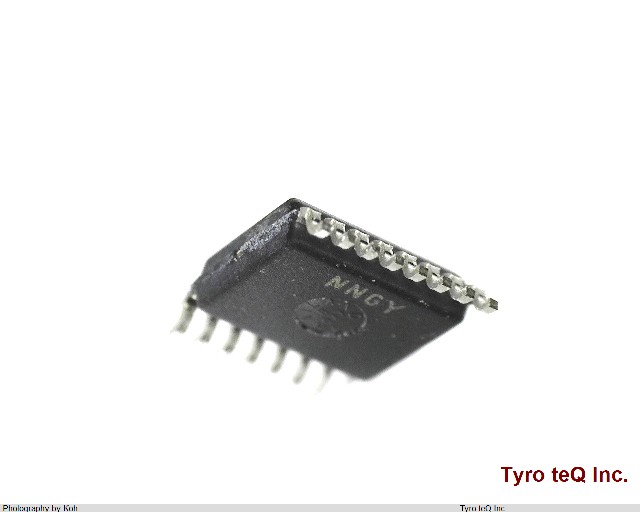

Name: MAX3100EEE
Brand: MAXIM
SKU: 230038517-0000-0000-0000

MAX3100EEE - MAXIM の商品詳細ページです。

No Image

２営業日以内に回答いたします

MAX3100EEE の詳細情報

型番	MAX3100EEE
メーカー	MAXIM
データシート
Address Bus Width	0
Boundary Scan	NO
Clock Frequency-Max	3.6864 MHz
Clock Frequency-Max (MHz)	3.6864
Communication Protocol	ASYNC, BIT
Communication Standard	ASYNC, BIT
DLA Qualification	Not Qualified
Data Transfer Rate-Max	0.028125 MBps
Data Transfer Rate-Max (MBps)	0.028125
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G16
JESD-609 Code	e0
Length	4.89 mm
Length (mm)	4.89
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of Serial I/Os	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	SSOP
Package Equivalence Code	SSOP16,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	240
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	1.73 mm
Seated Height-Max (mm)	1.73
Sub Category	Serial IO/Communication Controllers
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	2.7 V
Supply Voltage-Min (V)	2.7
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.635 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Width	3.9 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
