MAX3100CPD データシート

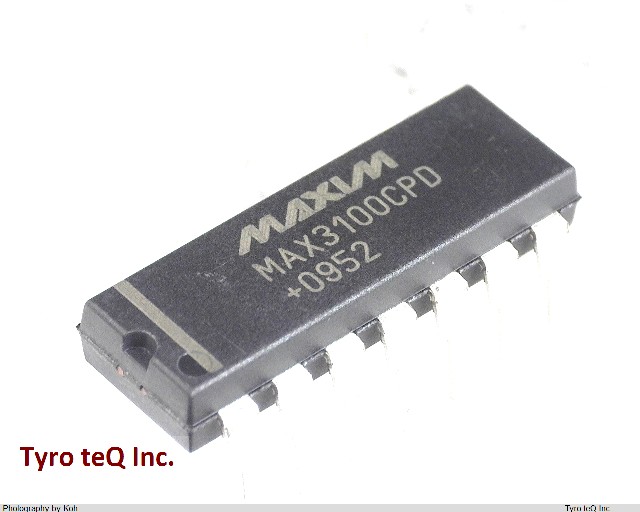

Name: MAX3100CPD
Brand: MAXIM
SKU: 230038516-0000-0000-0000

MAX3100CPD - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX3100CPD の詳細情報

型番	MAX3100CPD
メーカー	MAXIM
データシート
Address Bus Width	0
Boundary Scan	NO
Clock Frequency-Max	3.6864 MHz
Clock Frequency-Max (MHz)	3.6864
Communication Protocol	ASYNC, BIT
Communication Standard	ASYNC, BIT
DLA Qualification	Not Qualified
Data Transfer Rate-Max	0.028125 MBps
Data Transfer Rate-Max (MBps)	0.028125
External Data Bus Width	0
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T14
JESD-609 Code	e0
Length	19.05 mm
Length (mm)	19.05
Low Power Mode	YES
Moisture Sensitivity Level	1
Number of Serial I/Os	1
Number of Terminals	14
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	3/5 V
Qualification Status	Not Qualified
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Serial IO/Communication Controllers
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	2.7 V
Supply Voltage-Min (V)	2.7
Supply Voltage-Nom	3.3 V
Supply Voltage-Nom (V)	3.3
Surface Mount	NO
Technology	BICMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
uPs/uCs/Peripheral ICs Type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
