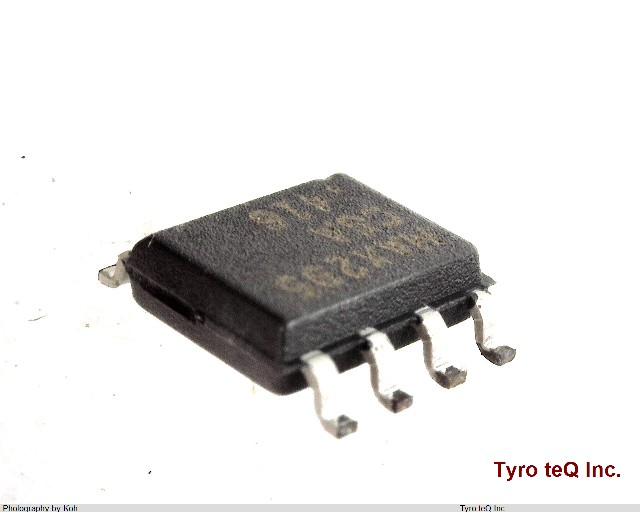

MAX295CSA データシート

Name: MAX295CSA
Brand: MAXIM
SKU: 230038443-0000-0000-0000

MAX295CSA - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX295CSA の詳細情報

型番	MAX295CSA
メーカー	MAXIM
データシート
Active Filter Type	SWITCHED CAPACITOR FILTER
Center or Cutoff Freq Rng-Max	50 kHz
Center or Cutoff Freq Rng-Max (kHz)	50
Center or Cutoff Freq Rng-Min	0.0001 kHz
Center or Cutoff Freq Rng-Min (kHz)	0.0001
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e0
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-5.5 V
Neg Supply Voltage-Min (Vsup)	-2.375 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Max (V)	-5.5
Negative Supply Voltage-Min (V)	-2.375
Negative Supply Voltage-Nom (V)	-5
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Order	8TH
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.3
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	8 AND 0
Power Supplies	+-5 V
Power Supplies (V)	+-5
Qualification Status	Not Qualified
Response	LOWPASS
Seated Height-Max	1.75 mm
Sub Category	Active Filters
Supply Current-Max (Isup)	22 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	2.375 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Transfer Characteristics	BUTTERWORTH
Width	3.9 mm
