MAX270CWP+ の詳細情報

  • 仕様・詳細
  • メーカー情報

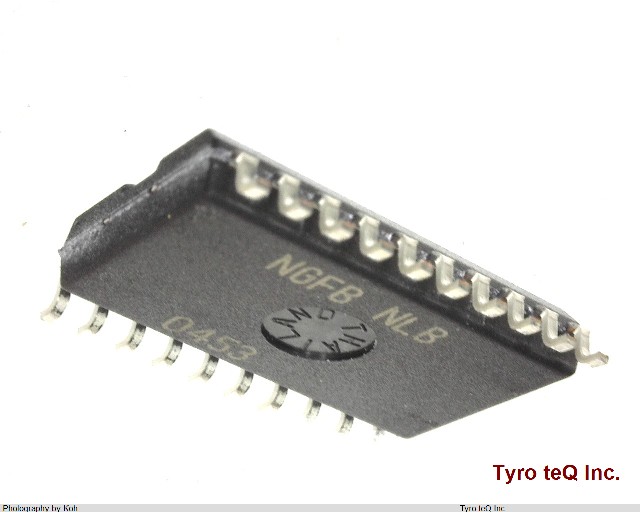

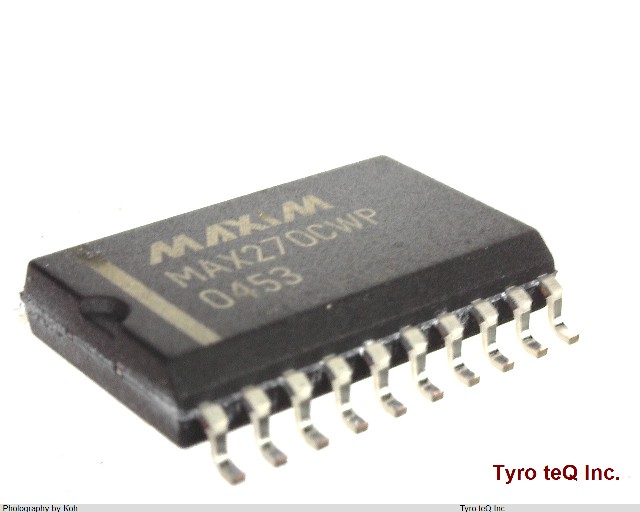

型番MAX270CWP+
メーカーMAXIM
Active Filter Type CONTINUOUS TIME FILTER
Center or Cutoff Freq Rng-Max 25 kHz
Center or Cutoff Freq Rng-Max (kHz) 25
Center or Cutoff Freq Rng-Min 0.001 kHz
Center or Cutoff Freq Rng-Min (kHz) 0.001
DLA Qualification Not Qualified
J-STD-609 Code e3
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Length 12.8 mm
Length (mm) 12.8
Moisture Sensitivity Level 1
Neg Supply Voltage-Max (Vsup) -8 V
Neg Supply Voltage-Min (Vsup) -2.375 V
Neg Supply Voltage-Nom (Vsup) -5 V
Negative Supply Voltage-Max (V) -8
Negative Supply Voltage-Min (V) -2.375
Negative Supply Voltage-Nom (V) -5
Number of Functions 2
Number of Terminals 20
Operating Temperature-Max 70 Cel
Operating Temperature-Max (Cel) 70
Operating Temperature-Min 0 Cel
Operating Temperature-Min (Cel) 0
Order 2ND
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE Meter
Peak Reflow Temperature (Cel) 260
Poles and Zeros 2 AND 0
Power Supplies +-5 V
Power Supplies (V) +-5
Qualification Status Not Qualified
Response LOWPASS
Seated Height-Max 2.65 mm
Seated Height-Max (mm) 2.65
Sub Category Active Filters
Supply Current-Max (Isup) 6.5 mA
Supply Current-Max (mA) 6.5
Supply Voltage-Max (V) 8
Supply Voltage-Max (Vsup) 8 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Transfer Characteristics DIGITALLY PROGRAMMABLE
