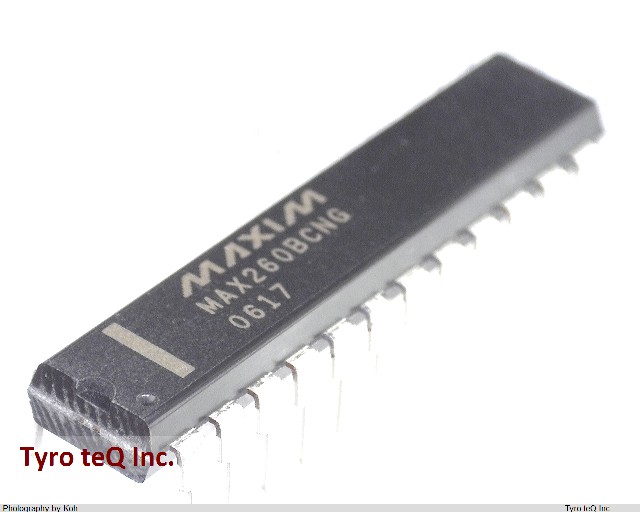

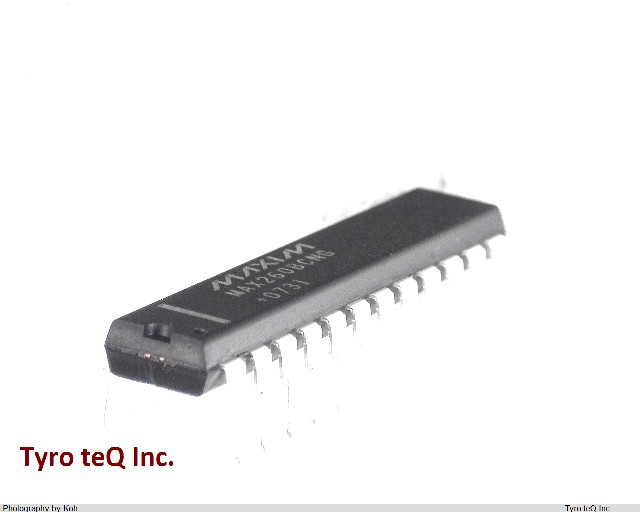

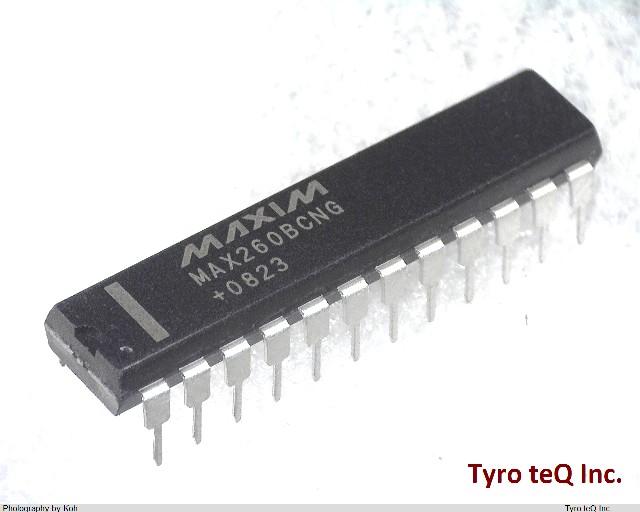

MAX260BCNG

Name: MAX260BCNG
Brand: MAXIM
SKU: 230394691-0000-0000-0000

MAX260BCNG - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX260BCNG の詳細情報

型番	MAX260BCNG
メーカー	MAXIM
Active Filter Type	SWITCHED CAPACITOR FILTER
Additional Feature	IT CAN ALSO BE OPERATED FROM A SINGLE 5V SUPPLY
Center or Cutoff Freq Rng-Max	10 kHz
Center or Cutoff Freq Rng-Max (kHz)	10
Center or Cutoff Freq Rng-Min	1.0E-5 kHz
Center or Cutoff Freq Rng-Min (kHz)	1.0E-5
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	30.545 mm
Length (mm)	30.545
Moisture Sensitivity Level	1
Neg Supply Voltage-Max (Vsup)	-6.3 V
Neg Supply Voltage-Min (Vsup)	-2.37 V
Neg Supply Voltage-Nom (Vsup)	-5 V
Negative Supply Voltage-Max (V)	-6.3
Negative Supply Voltage-Min (V)	-2.37
Negative Supply Voltage-Nom (V)	-5
Number of Functions	2
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Order	2ND
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Poles and Zeros	2 AND 0
Power Supplies	+-2.5/+-5 V
Qualification Status	Not Qualified
Response	UNIVERSAL
Seated Height-Max	4.572 mm
Sub Category	Active Filters
Supply Current-Max (Isup)	20 mA
Supply Voltage-Max (Vsup)	6.3 V
Supply Voltage-Min (Vsup)	2.37 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transfer Characteristics	DIGITALLY PROGRAMMABLE
Width	7.62 mm
