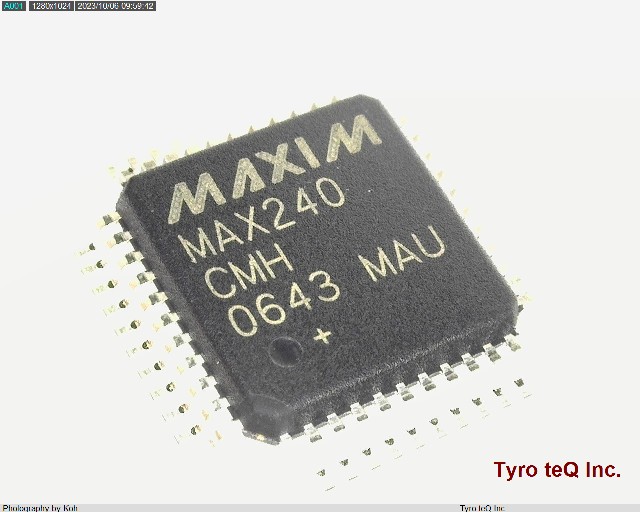

MAX240CMH データシート

Name: MAX240CMH
Brand: MAXIM
SKU: 230333077-0000-0000-0000

MAX240CMH - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX240CMH の詳細情報

型番	MAX240CMH
メーカー	MAXIM
データシート
Additional Feature	EXTERNAL CHARGE PUMP; TRISTATABLE RECEIVERS
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	5
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
J-STD-609 Code	e0
JESD-30 Code	S-PQFP-F44
Length (mm)	10
Moisture Sensitivity Level	1
Number of Functions	5
Number of Terminals	44
Operating Temperature-Max (Cel)	70
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Characteristics	3-STATE
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	QFF
Package Equivalence Code	QFP44,.5SQ,32
Package Shape	SQUARE
Package Style	FLATPACK Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	5
Receive Delay-Max (ns)	10000
Receiver Number of Bits	5
Seated Height-Max (mm)	2.45
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	15
Supply Voltage-Max (V)	5.5
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	FLAT
Terminal Pitch (mm)	0.8
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max (ns)	10000
Width (mm)	10
