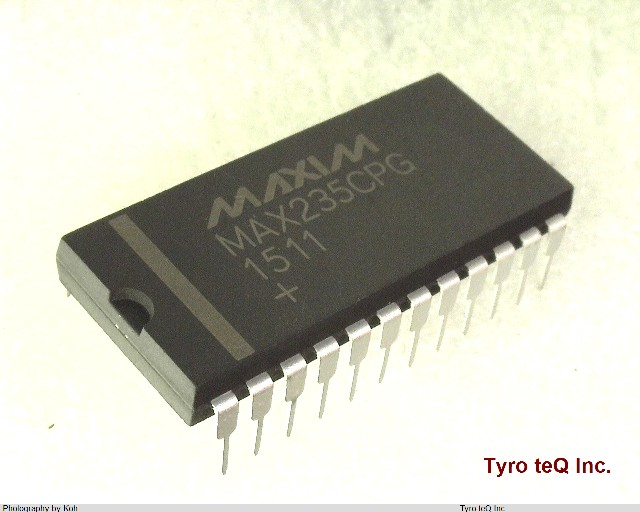

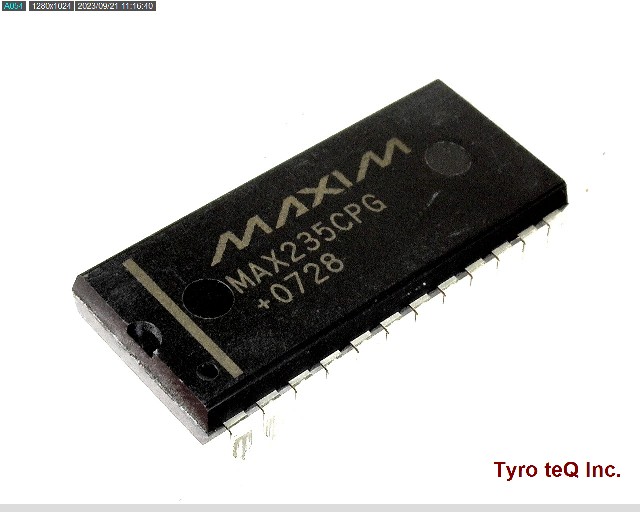

MAX235CPG+G36 データシート

Name: MAX235CPG+G36
Brand: MAXIM
SKU: 230331676-0000-0000-0000

MAX235CPG+G36 - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX235CPG+G36 の詳細情報

型番	MAX235CPG+G36
メーカー	MAXIM
データシート
Differential Output	NO
Driver Number of Bits	5
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e3
Length	31.75 mm
Moisture Sensitivity Level	1
Number of Functions	5
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	225
Receive Delay-Max	10000 ns
Receiver Number of Bits	5
Seated Height-Max	5.08 mm
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max	10000 ns
Width	15.24 mm
