MAX235CPG データシート

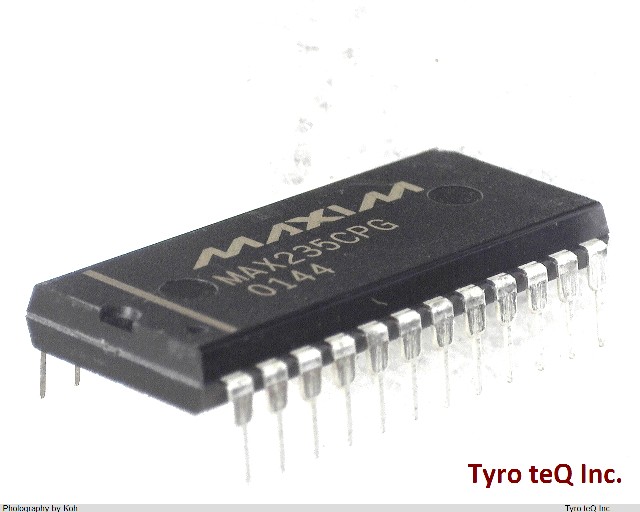

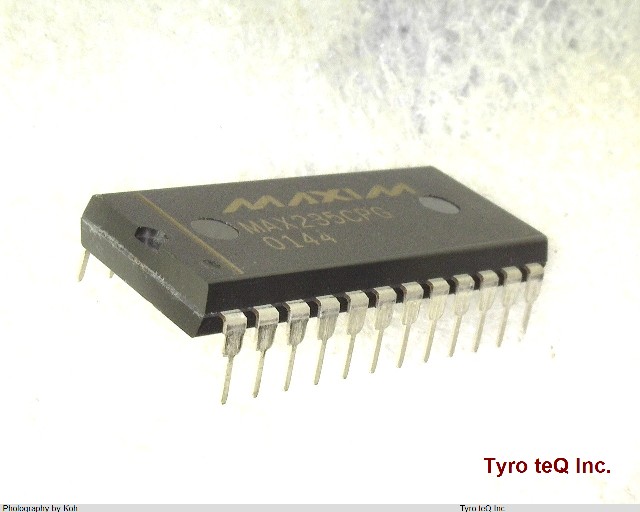

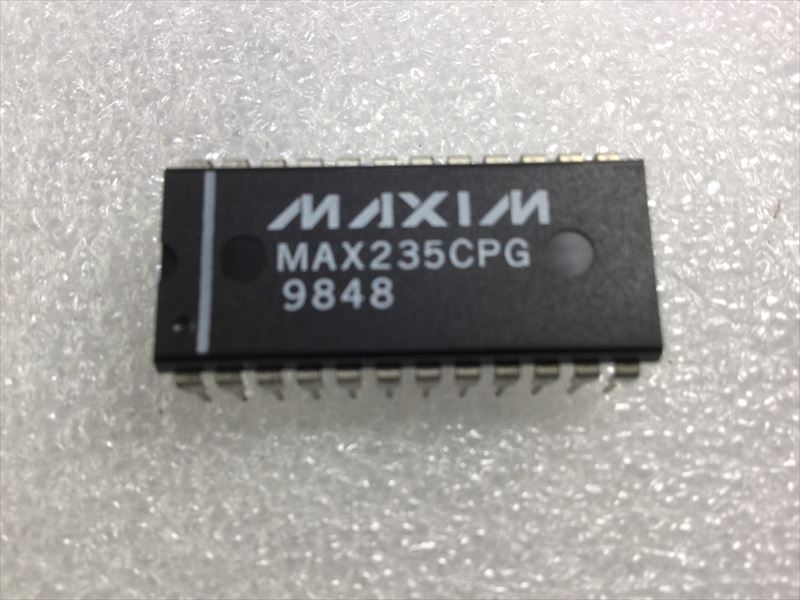

Name: MAX235CPG
Brand: MAXIM
SKU: 230006284-0000-0000-0000

MAX235CPG - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX235CPG の詳細情報

型番	MAX235CPG
メーカー	MAXIM
データシート
Additional Feature	TRISTATABLE RECEIVERS
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	5
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e3
Length	31.75 mm
Length (mm)	31.75
Moisture Sensitivity Level	1
Number of Functions	5
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Characteristics	3-STATE
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	225
Power Supplies (V)	5
Receive Delay-Max	10000 ns
Receive Delay-Max (ns)	10000
Receiver Number of Bits	5
Seated Height-Max	5.08 mm
Seated Height-Max (mm)	5.08
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	15
Supply Voltage-Max	5.25 V
Supply Voltage-Max (V)	5.25
Supply Voltage-Min (V)	4.75
Supply Voltage-Nom (V)	5
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	Matte Tin (Sn)
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max (ns)	10000
Width (mm)	15.24
