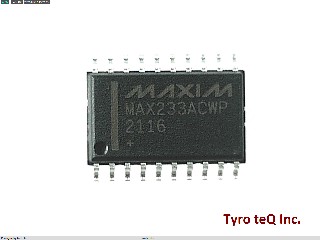

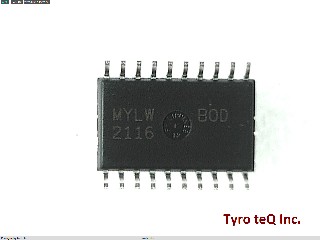

MAX233ACWP+G36 データシート

Name: MAX233ACWP+G36
Brand: MAXIM
SKU: 230010585-0000-0000-0000

MAX233ACWP+G36 - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX233ACWP+G36 の詳細情報

型番	MAX233ACWP+G36
メーカー	MAXIM
データシート
Differential Output	NO
Driver Number of Bits	2
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
JESD-30 Code	R-PDSO-G20
JESD-609 Code	e3
Length	12.8 mm
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Min	0 Cel
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	225
Receive Delay-Max	1000 ns
Receiver Number of Bits	2
Seated Height-Max	2.65 mm
Supply Voltage-Max	5.25 V
Supply Voltage-Min	4.75 V
Supply Voltage-Nom	5 V
Surface Mount	YES
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max	3500 ns
Width	7.5 mm
