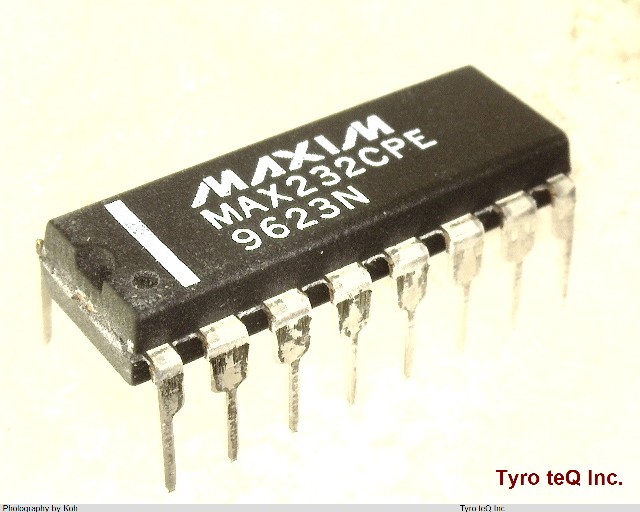

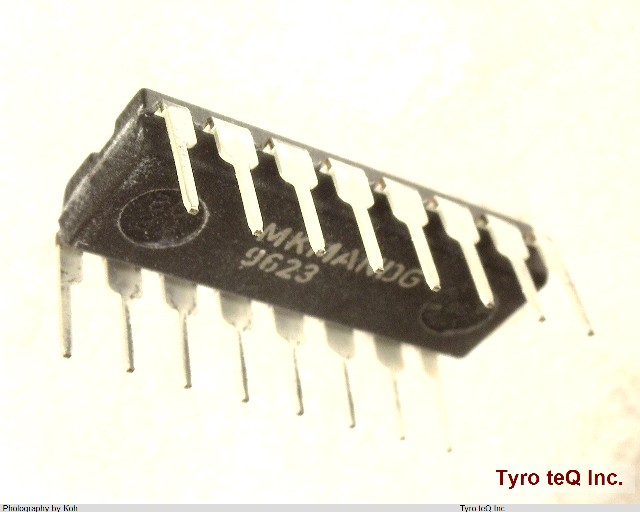

Name: MAX232CPE
Brand: MAXIM
SKU: 230000221-0000-0000-0000

MAX232CPE - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX232CPE の詳細情報

型番	MAX232CPE
メーカー	MAXIM
データシート
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	2
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T16
Length	19.175 mm
Length (mm)	19.175
Moisture Sensitivity Level	1
Number of Functions	2
Number of Terminals	16
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Low Current-Max (mA)	3.2
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	240
Power Supplies (V)	5
Receive Delay-Max	10000 ns
Receive Delay-Max (ns)	10000
Receiver Number of Bits	2
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	10
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	4.5 V
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	NO
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	20
Transmit Delay-Max	10000 ns
Transmit Delay-Max (ns)	10000
