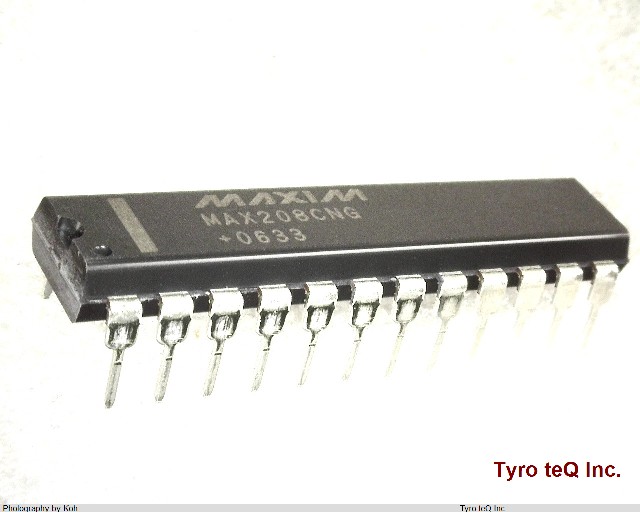

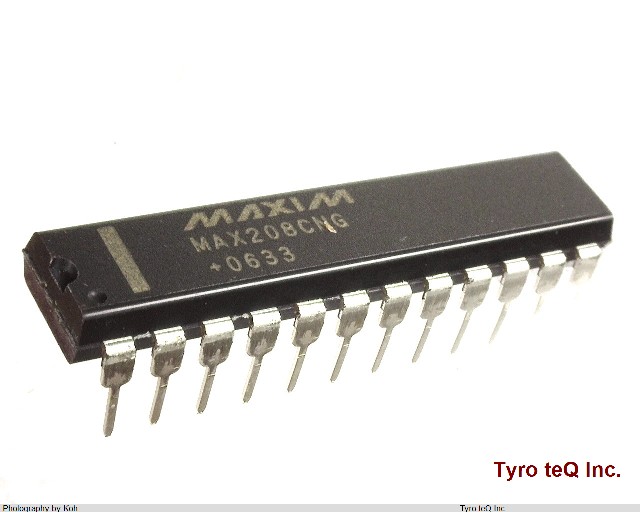

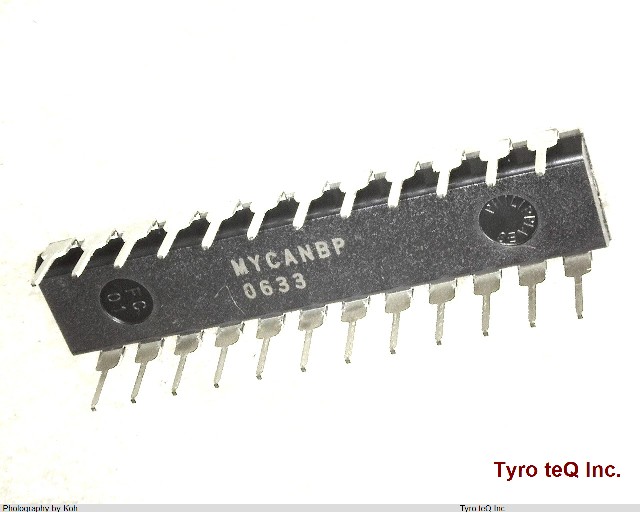

MAX208CNG データシート

Name: MAX208CNG
Brand: MAXIM
SKU: 230006246-0000-0000-0000

MAX208CNG - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX208CNG の詳細情報

型番	MAX208CNG
メーカー	MAXIM
データシート
Additional Feature	EXTERNAL CHARGE PUMP
DLA Qualification	Not Qualified
Differential Output	NO
Driver Number of Bits	4
Input Characteristics	SCHMITT TRIGGER
Interface IC Type	LINE DRIVER
Interface Standard	EIA-232-E; TIA-232-E; V.28
J-STD-609 Code	e0
JESD-30 Code	R-PDIP-T24
JESD-609 Code	e0
Length	30.545 mm
Length (mm)	30.545
Moisture Sensitivity Level	1
Number of Functions	4
Number of Terminals	24
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Out Swing-Min (V)	10
Output Characteristics	TOTEM-POLE
Output Low Current-Max (mA)	1.6
Output Polarity	INVERTED
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP24,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies (V)	5
Receive Delay-Max (ns)	10000
Receiver Number of Bits	4
Seated Height-Max	4.572 mm
Seated Height-Max (mm)	4.572
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	20
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	4.5 V
Supply Voltage-Min (V)	4.5
Supply Voltage-Nom (V)	5
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch (mm)	2.54
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width (mm)	7.62
