MAX182BEPI+ データシート

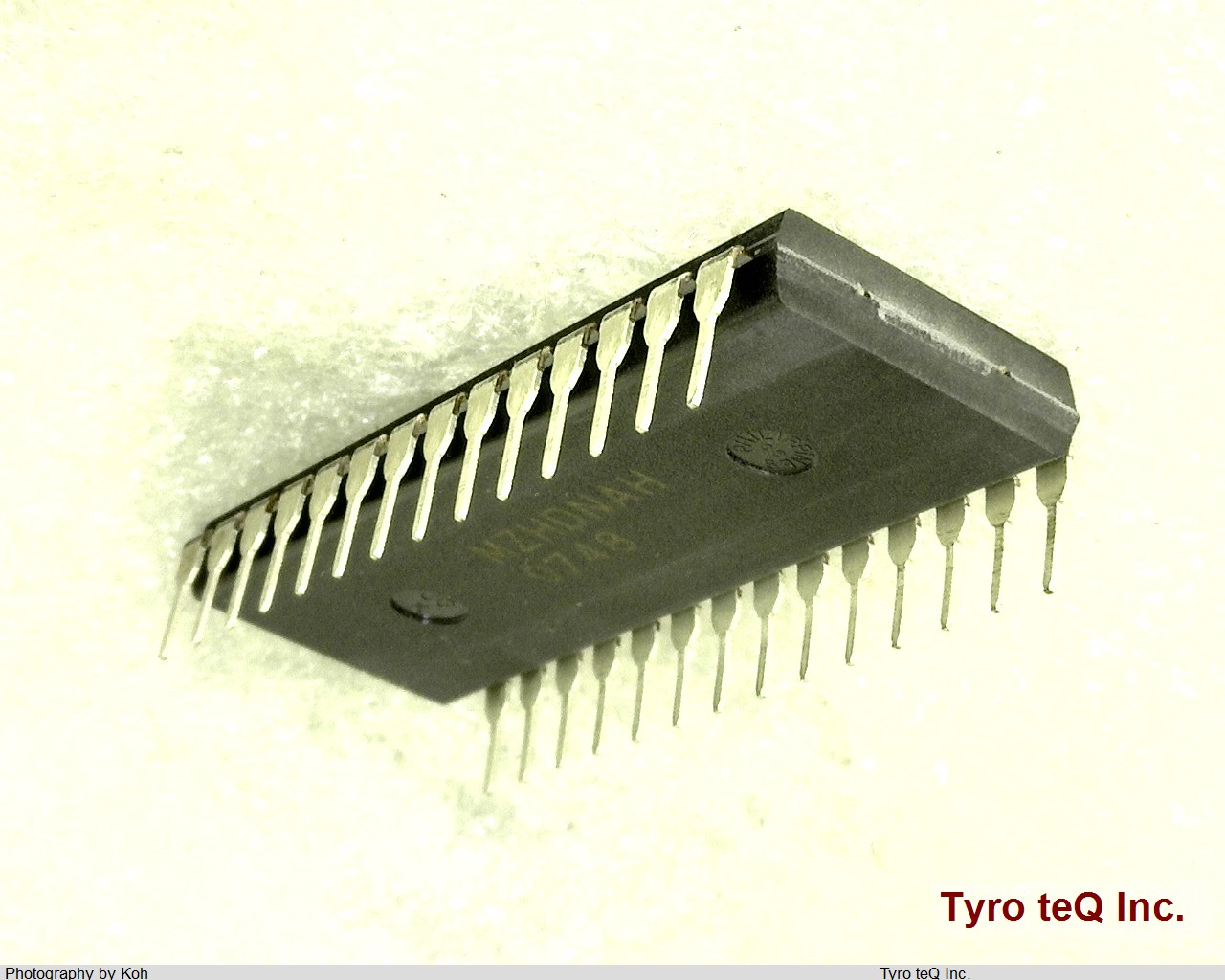

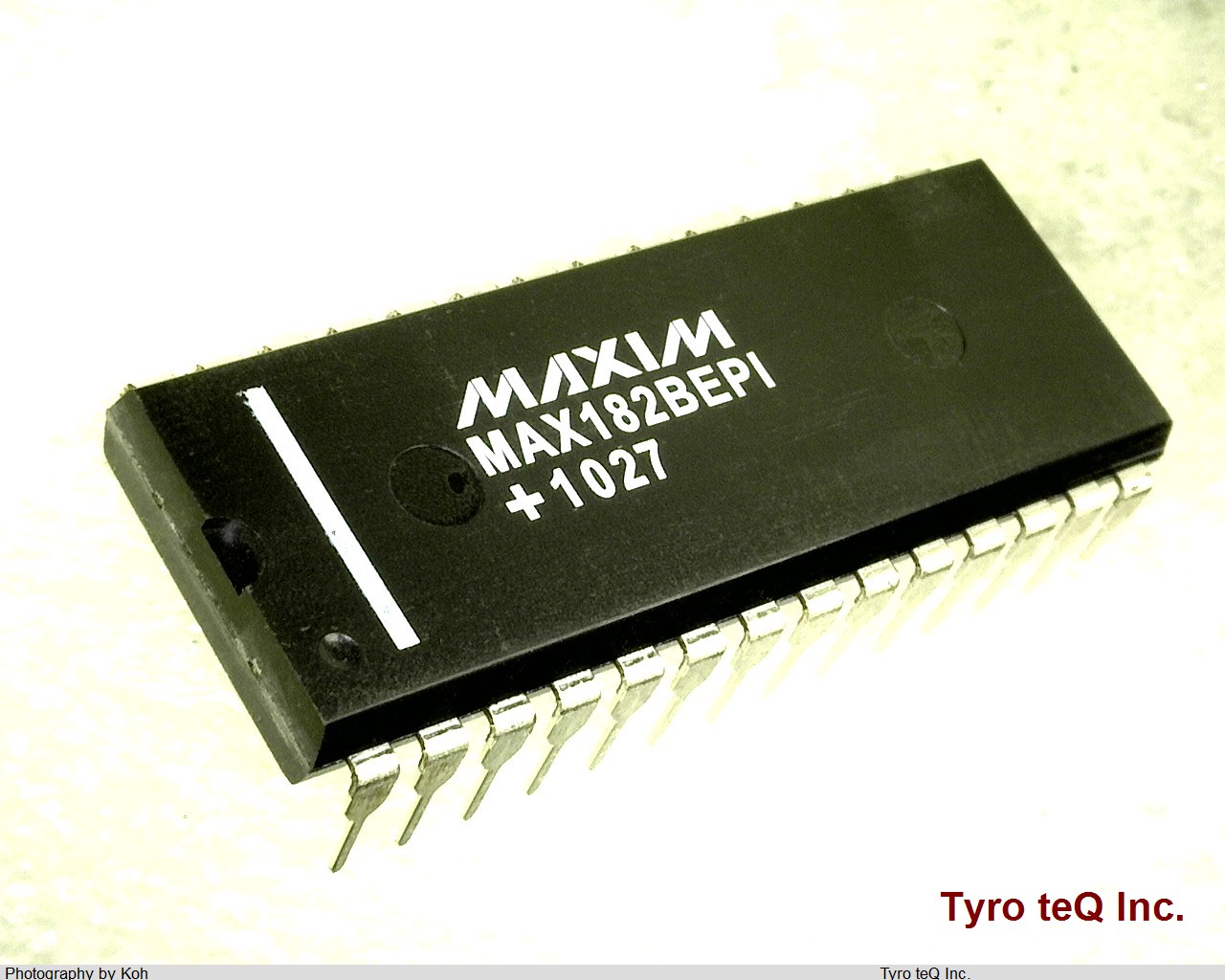

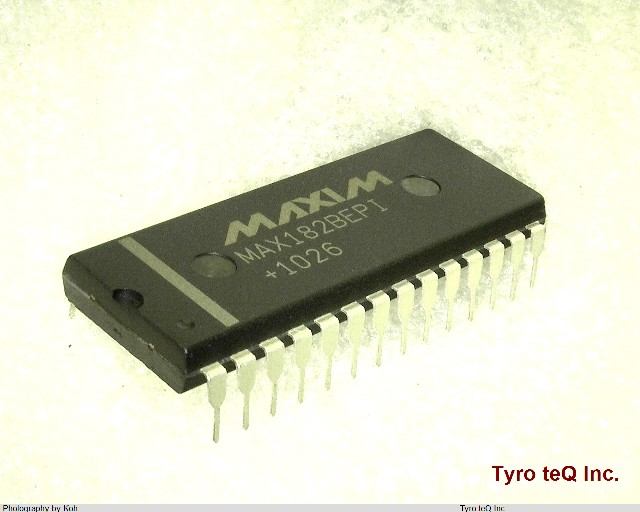

Name: MAX182BEPI+
Brand: MAXIM
SKU: 230499135-0000-0000-0000

MAX182BEPI+ - MAXIM の商品詳細ページです。

No Image

２営業日以内に回答いたします

MAX182BEPI+ の詳細情報

型番	MAX182BEPI+
メーカー	MAXIM
データシート
Analog Input Voltage-Max	5 V
Analog Input Voltage-Max (V)	5
Analog Input Voltage-Min	-5 V
Analog Input Voltage-Min (V)	-5
Conversion Time-Max	140 us
Conversion Time-Max (us)	140
Converter Type	ADC, SUCCESSIVE APPROXIMATION
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T28
JESD-609 Code	e3
Length	36.83 mm
Length (mm)	36.83
Linearity Error-Max (EL)	1 %
Linearity Error-Max (EL) (%)	1
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Analog In Channels	4
Number of Bits	12
Number of Functions	1
Number of Terminals	28
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Bit Code	BINARY, OFFSET BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP28,.6
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	+-5,15 V
Power Supplies (V)	+-5,15
Qualification Status	Not Qualified
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	5.08 mm
Seated Height-Max (mm)	5.08
Sub Category	Analog to Digital Converters
Supply Current-Max	10 mA
Supply Current-Max (mA)	10
Surface Mount	NO
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
