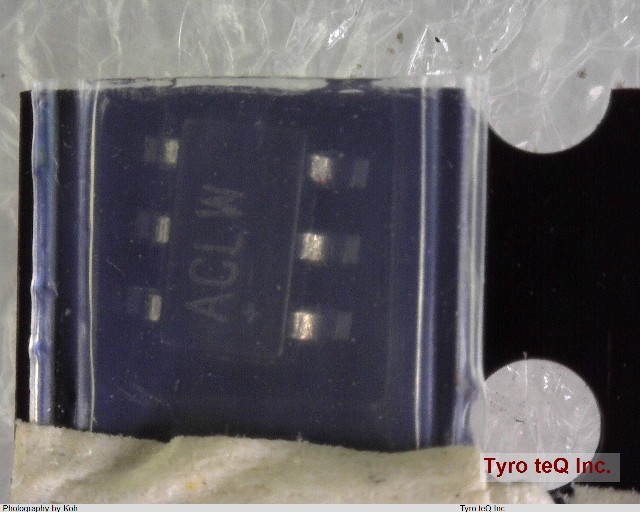

MAX16052AUT+

Name: MAX16052AUT+
Brand: MAXIM
SKU: 230750866-0000-0000-0000

MAX16052AUT+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX16052AUT+ の詳細情報

型番	MAX16052AUT+
メーカー	MAXIM
Adjustable Threshold	YES
Analog IC - Other Type	POWER SUPPLY MANAGEMENT CIRCUIT
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G6
JESD-609 Code	e3
Length	2.9 mm
Length (mm)	2.9
Moisture Sensitivity Level	1
Number of Channels	1
Number of Functions	1
Number of Terminals	6
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Package Body Material	PLASTIC/EPOXY
Package Code	LSSOP
Package Equivalence Code	TSOP6,.11,37
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH Meter
Peak Reflow Temperature (Cel)	260
Power Supplies	2.25/28 V
Power Supplies (V)	2.25/28
Qualification Status	Not Qualified
Seated Height-Max	1.45 mm
Seated Height-Max (mm)	1.45
Sub Category	Power Management Circuits
Supply Current-Max (Isup)	0.045 mA
Supply Current-Max (mA)	0.045
Supply Voltage-Max (V)	28
Supply Voltage-Max (Vsup)	28 V
Supply Voltage-Min (V)	2.25
Supply Voltage-Min (Vsup)	2.25 V
Supply Voltage-Nom (V)	3.3
Supply Voltage-Nom (Vsup)	3.3 V
Surface Mount	YES
Technology	BICMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	0.95 mm
Terminal Pitch (mm)	0.95
Terminal Position	DUAL
Threshold Voltage-Nom	+0.5V V
Threshold Voltage-Nom (V)	+0.5V
Time@Peak Reflow Temperature-Max (s)	30
Width	1.625 mm
Width (mm)	1.625
