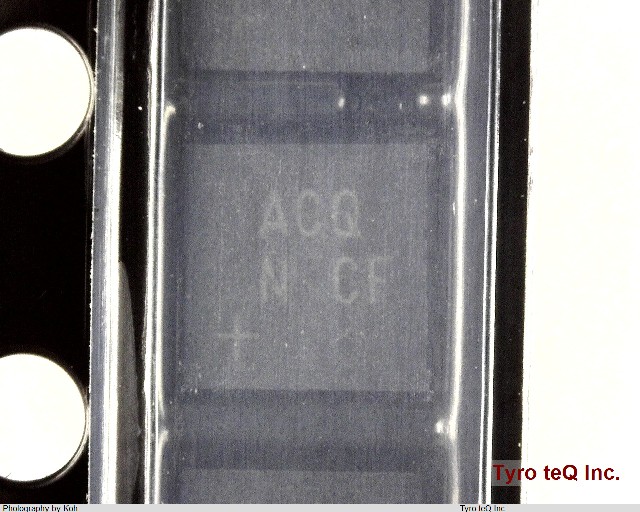

MAX1556ETB データシート

Name: MAX1556ETB
Brand: MAXIM
SKU: 230370252-0000-0000-0000

MAX1556ETB - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX1556ETB の詳細情報

型番	MAX1556ETB
メーカー	MAXIM
データシート
Additional Feature	ALSO OPER IN O/P VG 2.5V AND 3.3V; ALSO OPER IN ADJ MODE FROM 0.75 TO 5.5 V
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	2.6 V
Input Voltage-Min (V)	2.6
Input Voltage-Nom	3.6 V
Input Voltage-Nom (V)	3.6
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-N10
JESD-609 Code	e0
Length	3 mm
Length (mm)	3
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	10
Operating Temperature-Max	85 Cel
Operating Temperature-Max (Cel)	85
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	1.2 A
Output Current-Max (A)	1.2
Output Voltage-Nom	1.8 V
Output Voltage-Nom (V)	1.8
Package Body Material	PLASTIC/EPOXY
Package Code	HVSON
Package Equivalence Code	SOLCC10,.12,20
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	245
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BUCK
Switching Frequency-Max	1100 kHz
Switching Frequency-Max (kHz)	1100
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.5 mm
Terminal Pitch (mm)	0.5
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	3 mm
