MAX153CPP データシート

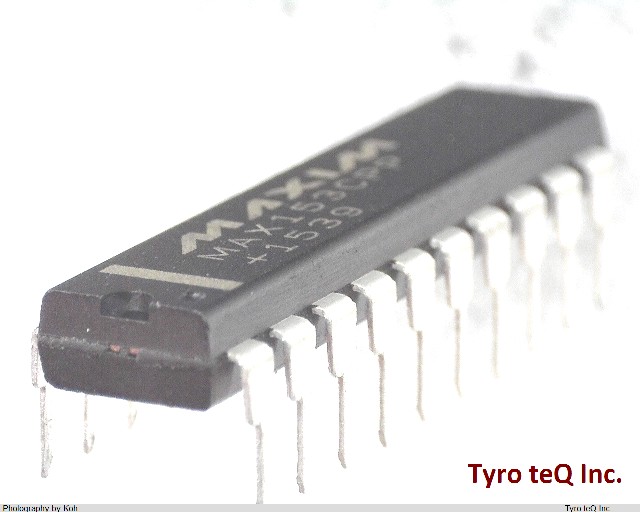

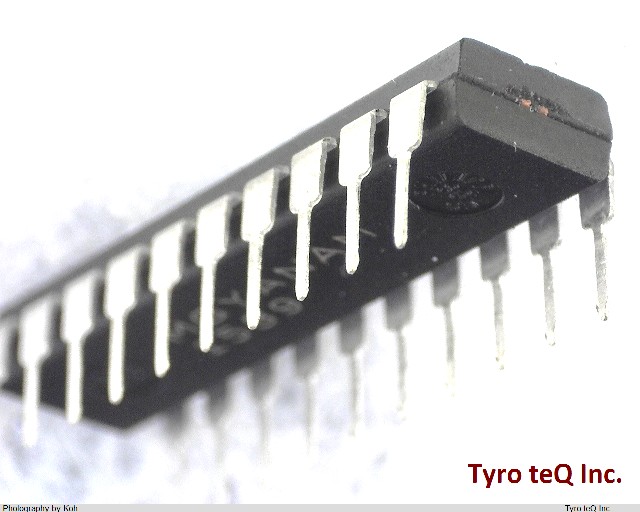

Name: MAX153CPP
Brand: MAXIM
SKU: 230331620-0000-0000-0000

MAX153CPP - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX153CPP の詳細情報

型番	MAX153CPP
メーカー	MAXIM
データシート
Analog Input Voltage-Max	2.5 V
Analog Input Voltage-Max (V)	2.5
Analog Input Voltage-Min	-2.5 V
Analog Input Voltage-Min (V)	-2.5
Conversion Time-Max	0.875 us
Conversion Time-Max (us)	0.875
Converter Type	ADC, FLASH METHOD
DLA Qualification	Not Qualified
J-STD-609 Code	e3
JESD-30 Code	R-PDIP-T20
JESD-609 Code	e0
Length	26.16 mm
Length (mm)	26.16
Linearity Error-Max (EL)	0.39 %
Linearity Error-Max (EL) (%)	0.39
Moisture Sensitivity Level	1
Negative Supply Voltage-Nom	-5 V
Negative Supply Voltage-Nom (V)	-5
Number of Analog In Channels	2
Number of Bits	8
Number of Functions	1
Number of Terminals	20
Operating Temperature-Max	70 Cel
Operating Temperature-Max (Cel)	70
Operating Temperature-Min	0 Cel
Operating Temperature-Min (Cel)	0
Output Bit Code	BINARY
Output Format	PARALLEL, 8 BITS
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP20,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Peak Reflow Temperature (Cel)	245
Power Supplies	5,GND/-5 V
Qualification Status	Not Qualified
Sample Rate	1 MHz
Sample-and-Hold/Track-and-Hold	TRACK
Seated Height-Max	4.572 mm
Sub Category	Analog to Digital Converters
Supply Voltage-Nom	5 V
Surface Mount	NO
Technology	CMOS
Temperature Grade	COMMERCIAL
Terminal Finish	MATTE TIN
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Width	7.62 mm
