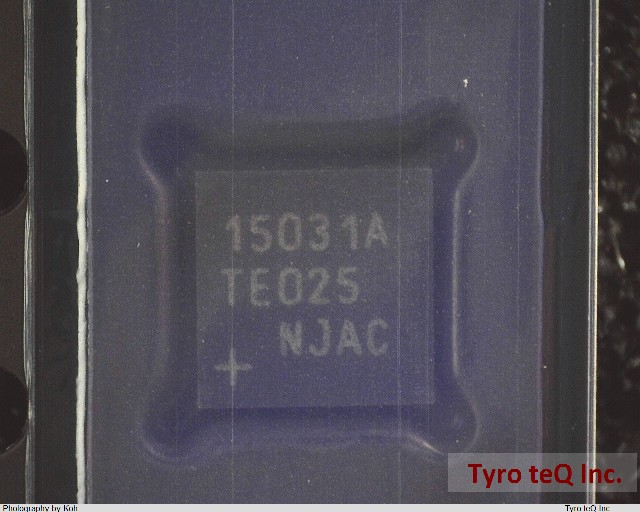

MAX15031ATE

Name: MAX15031ATE
Brand: MAXIM
SKU: 230538815-0000-0000-0000

MAX15031ATE - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX15031ATE の詳細情報

型番	MAX15031ATE
メーカー	MAXIM
Additional Feature	ALSO OPERATES IN ADJUSTABLE MODE FROM 3.7VTO 76V; ALSO OPERATES WITH 5.5 TO 11 VOLT SUPPLY
Analog IC - Other Type	SWITCHING REGULATOR
Control Mode	CURRENT-MODE
Control Technique	PULSE WIDTH MODULATION
DLA Qualification	Not Qualified
Input Voltage-Max	5.5 V
Input Voltage-Max (V)	5.5
Input Voltage-Min	2.7 V
Input Voltage-Min (V)	2.7
Input Voltage-Nom	3.3 V
Input Voltage-Nom (V)	3.3
J-STD-609 Code	e3
JESD-30 Code	S-PQCC-N16
JESD-609 Code	e3
Length	4 mm
Length (mm)	4
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	125 Cel
Operating Temperature-Max (Cel)	125
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Output Current-Max	0.0045 A
Output Current-Max (A)	0.0045
Package Body Material	PLASTIC/EPOXY
Package Code	HVQCCN
Package Equivalence Code	LCC16,.16SQ,25
Package Shape	SQUARE
Package Style	CHIP CARRIER Meter
Peak Reflow Temperature (Cel)	260
Qualification Status	Not Qualified
Seated Height-Max	0.8 mm
Seated Height-Max (mm)	0.8
Sub Category	Switching Regulator or Controllers
Surface Mount	YES
Switcher Configuration	BOOST
Switching Frequency-Max	448 kHz
Switching Frequency-Max (kHz)	448
Technology	BICMOS
Temperature Grade	AUTOMOTIVE
Terminal Finish	MATTE TIN
Terminal Form	NO LEAD
Terminal Pitch	0.635 mm
Terminal Pitch (mm)	0.635
Terminal Position	QUAD
Time@Peak Reflow Temperature-Max (s)	30
Width	4 mm
Width (mm)	4
