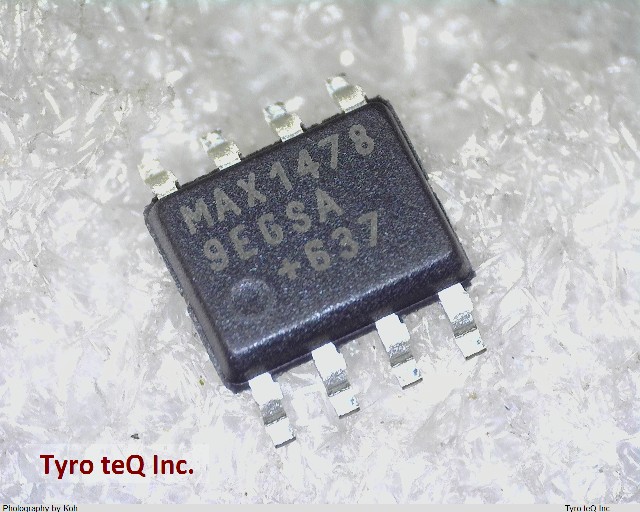

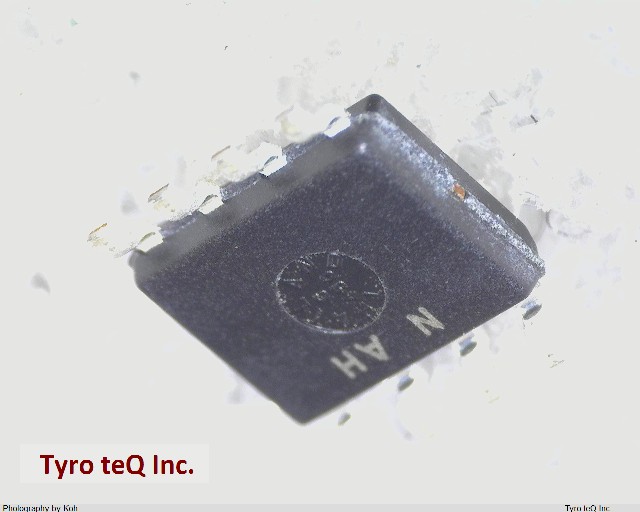

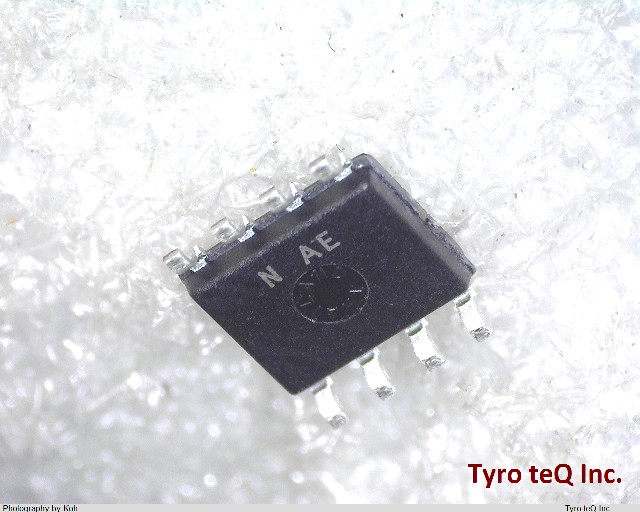

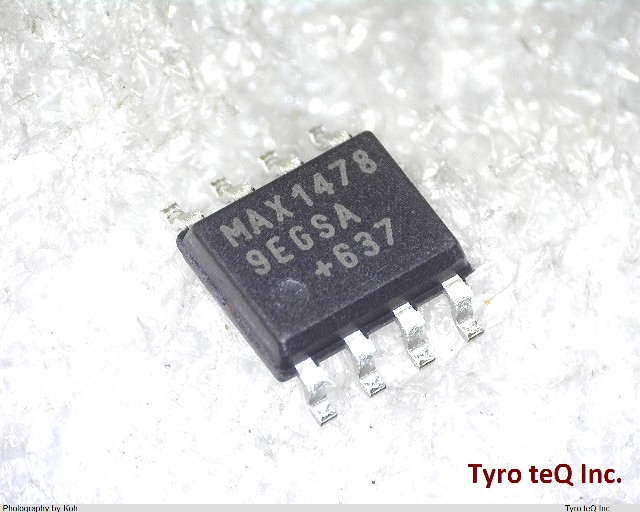

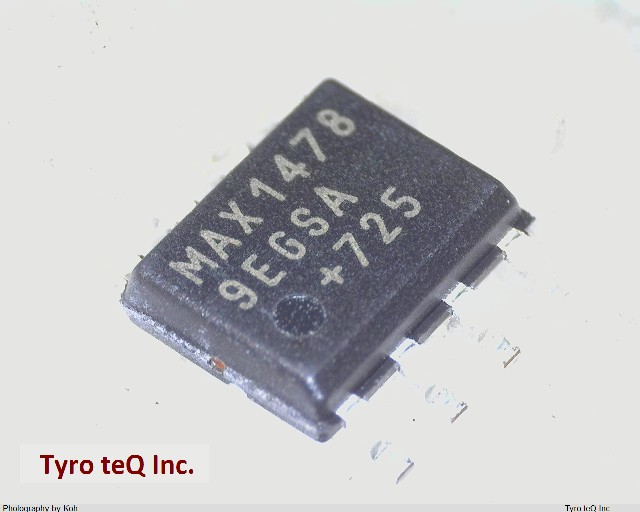

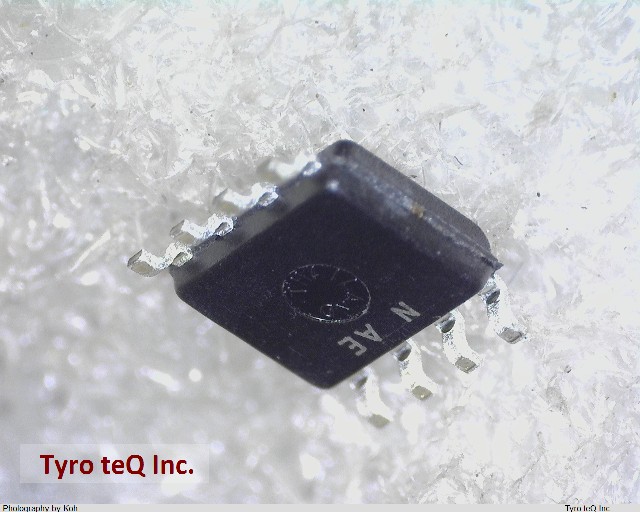

MAX14789EGSA+

Name: MAX14789EGSA+
Brand: MAXIM
SKU: 230761630-0000-0000-0000

MAX14789EGSA+ - MAXIM の商品詳細ページです。

２営業日以内に回答いたします

MAX14789EGSA+ の詳細情報

型番	MAX14789EGSA+
メーカー	MAXIM
DLA Qualification	Not Qualified
Differential Output	YES
Driver Number of Bits	1
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type	LINE TRANSCEIVER
Interface Standard	EIA-485
J-STD-609 Code	e3
JESD-30 Code	R-PDSO-G8
JESD-609 Code	e3
Length	4.9 mm
Length (mm)	4.9
Moisture Sensitivity Level	1
Number of Functions	1
Number of Terminals	8
Operating Temperature-Max	105 Cel
Operating Temperature-Max (Cel)	105
Operating Temperature-Min	-40 Cel
Operating Temperature-Min (Cel)	-40
Out Swing-Min (V)	1.5
Output Low Current-Max (mA)	1
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP8,.25
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Peak Reflow Temperature (Cel)	260
Power Supplies (V)	3.3/5
Receive Delay-Max	200 ns
Receive Delay-Max (ns)	200
Receiver Number of Bits	1
Seated Height-Max	1.75 mm
Seated Height-Max (mm)	1.75
Sub Category	Line Driver or Receivers
Supply Current-Max (mA)	4
Supply Voltage-Max	5.5 V
Supply Voltage-Max (V)	5.5
Supply Voltage-Min	3 V
Supply Voltage-Min (V)	3
Supply Voltage-Nom	5 V
Supply Voltage-Nom (V)	5
Surface Mount	YES
Technology	BICMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	MATTE TIN
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Pitch (mm)	1.27
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	30
Transmit Delay-Max	1000 ns
